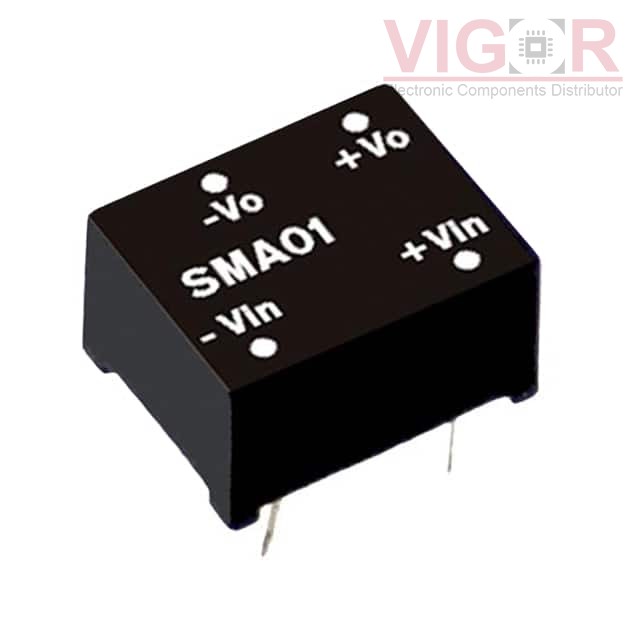

SMA01N-12

Part No :: SMA01N-12

Manufacturer: MEAN WELL

VIGOR # :: 4130355

Description: DC DC CONVERTER 12V 1W

Catalog: DC DC Converters

DataSheet: SMA01N-12 PDF

Country of origin: -

Date code: -

SMA01N-12 Specifications

Type	Description
Series:	SMA01 (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	84mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, SCP
Operating Temperature:	-40°C ~ 90°C (With Derating)
Efficiency:	78%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module, 4 Leads
Size / Dimension:	0.50" L x 0.40" W x 0.28" H (12.7mm x 10.2mm x 7.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
SMA01N-15 Match 71%	MEAN WELL DC DC CONVERTER 15V 1W	SMA01N-12 vs SMA01N-15
PDS1-S24-S12-D Match 100%	CUI Inc. DC DC CONVERTER 12V 1W	SMA01N-12 vs PDS1-S24-S12-D
PDS1-S24-S15-D Match 71%	CUI Inc. DC DC CONVERTER 15V 1W	SMA01N-12 vs PDS1-S24-S15-D
B2412D-1WR3 Match 99%	Mornsun DC DC CONVERTER 12V 1W	SMA01N-12 vs B2412D-1WR3
B2415D-1WR3 Match 71%	Mornsun DC DC CONVERTER 15V 1W	SMA01N-12 vs B2415D-1WR3
F2412N-1WR3 Match 90%	Mornsun DC DC CONVERTER 12V 1W	SMA01N-12 vs F2412N-1WR3
