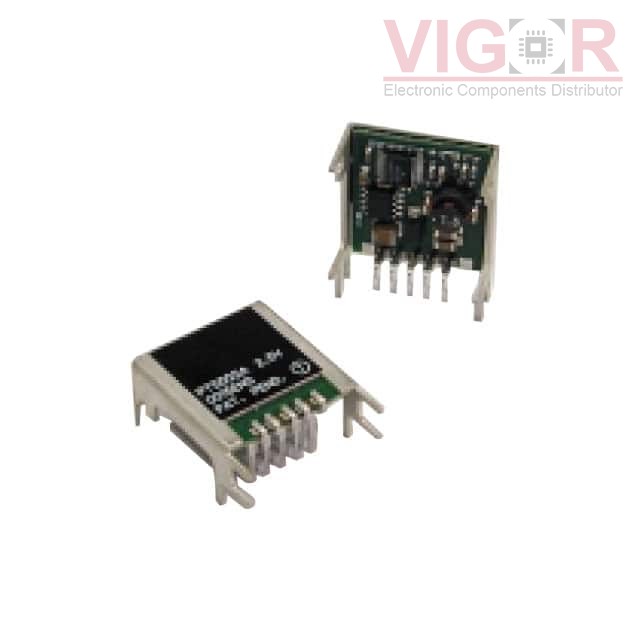

PT5523C

Part No :: PT5523C

Manufacturer: VIGOR

VIGOR # :: 4130762

Description: SWITCHING REGLTR, VOLTAGE-MODE

Catalog: DC DC Converters

DataSheet: PT5523C PDF

Country of origin: -

Date code: -

PT5523C Specifications

Type	Description
Series:	Excalibur™ PT5520
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	3.1V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	84%
Mounting Type:	Surface Mount
Package / Case:	5-SMD Module
Size / Dimension:	-
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PT5522C Match 69%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT5523C vs PT5522C
PT5503C Match 56%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT5523C vs PT5503C
PT5525C Match 61%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT5523C vs PT5525C
PT5524C Match 86%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT5523C vs PT5524C
