PDM2-S5-D7-D

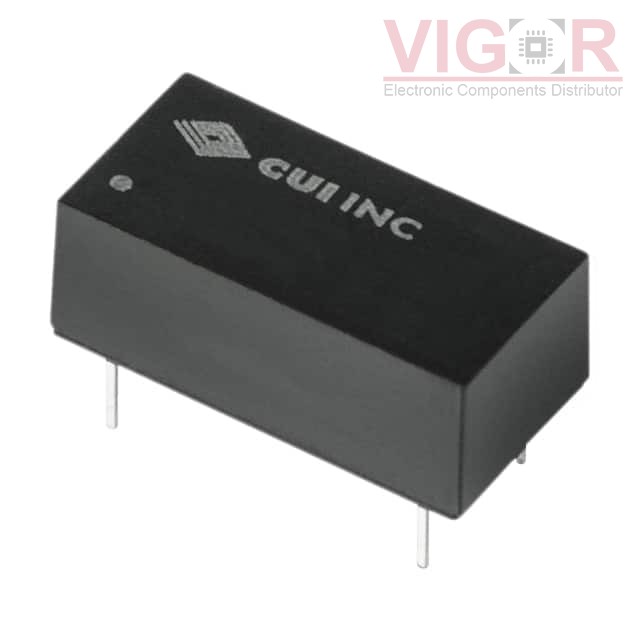

Image is for reference,
please contact us to get the real picture

Part No :: PDM2-S5-D7-D

Manufacturer: CUI Inc.

Description: DC DC CONVERTER +/-7V 2W

Catalog: DC DC Converters

DataSheet: PDM2-S5-D7-D PDF

Availability: 1553 pieces

Unit Price: ~~$7.77000~~

Current price of PDM2-S5-D7-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PDM2-S5-D7-D Specifications

Type	Description
Series:	PDM2-D (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	7V
Voltage - Output 2:	-7V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	142mA, 142mA
Power (Watts):	2 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	80%
Mounting Type:	Through Hole
Package / Case:	14-DIP Module, 6 Leads
Size / Dimension:	0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
