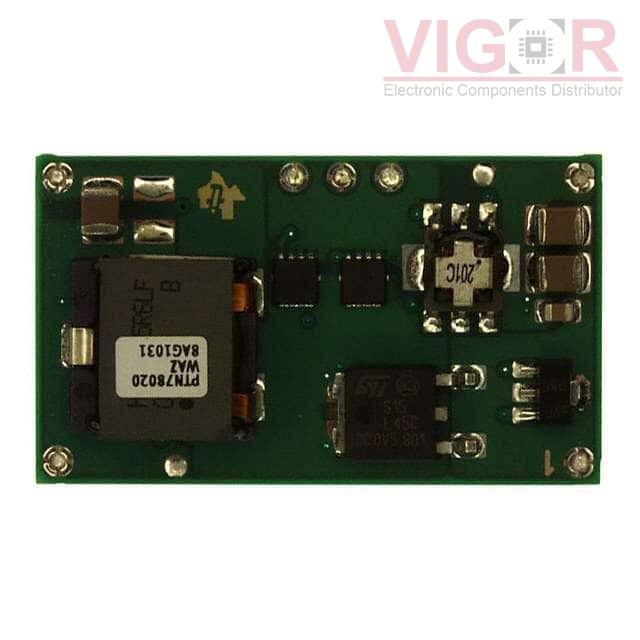

PTN78020HAZ

Part No :: PTN78020HAZ

Manufacturer: VIGOR

VIGOR # :: 4132698

Description: PTN78020H 6 A, WIDE INPUT NON-IS

Catalog: DC DC Converters

DataSheet: PTN78020HAZ PDF

Country of origin: -

Date code: -

PTN78020HAZ Specifications

Type	Description
Series:	PTN78020H
Package:	Bulk
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	15V
Voltage - Input (Max):	36V
Voltage - Output 1:	11.85 ~ 22V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	96%
Mounting Type:	Surface Mount
Package / Case:	7-SMD Module
Size / Dimension:	1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
SRBH-06H1A1G Match 100%	Power-One (Bel Power Solutions) DC DC CONVERTER 3.3-5V 30W	PTN78020HAZ vs SRBH-06H1A1G
171050601 Match 74%	Würth Elektronik Midcom DC DC CONVERTER 0.8-6V	PTN78020HAZ vs 171050601
PTN78020WAZ Match 100%	VIGOR 6-AMP, WIDE-INPUT ADJUSTABLE SWI	PTN78020HAZ vs PTN78020WAZ
PTN78020WAZT Match 100%	Texas Instruments DC DC CONVERTER 2.5-12.6V	PTN78020HAZ vs PTN78020WAZT
PTN78020WAS Match 100%	Texas Instruments DC DC CONVERTER 2.5-12.6V	PTN78020HAZ vs PTN78020WAS
PTN78020HAS Match 100%	Texas Instruments DC DC CONVERTER 11.85-22V	PTN78020HAZ vs PTN78020HAS
