DB02D0505A

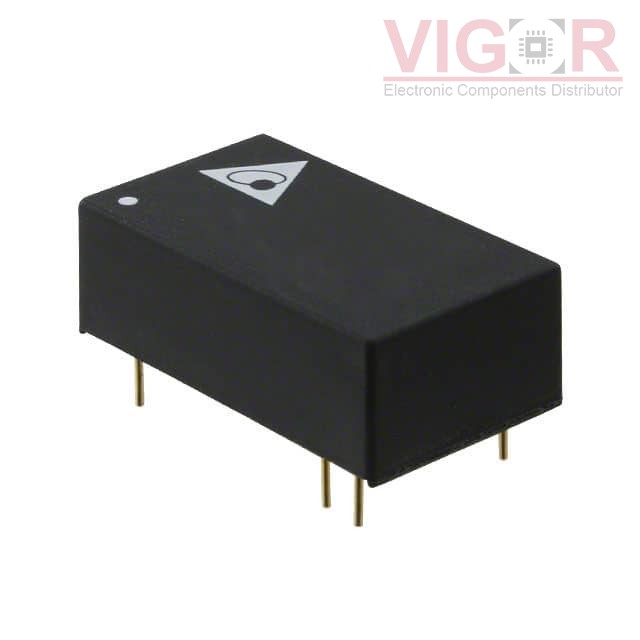

Image is for reference,
please contact us to get the real picture

Part No :: DB02D0505A

Manufacturer: Delta Electronics / Power

Description: DC DC CONVERTER +/-5V 2W

Catalog: DC DC Converters

DataSheet: DB02D0505A PDF

Availability: 1209 pieces

Unit Price: ~~$10.84380~~

Current price of DB02D0505A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DB02D0505A Specifications

Type	Description
Series:	DB02S/D (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA, 200mA
Power (Watts):	2 W
Voltage - Isolation:	1.5 kV
Applications:	Medical
Features:	SCP, UVLO
Operating Temperature:	-40°C ~ 80°C
Efficiency:	64%
Mounting Type:	Through Hole
Package / Case:	16-DIP Module, 6 Leads
Size / Dimension:	0.94" L x 0.54" W x 0.30" H (23.9mm x 13.7mm x 7.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
