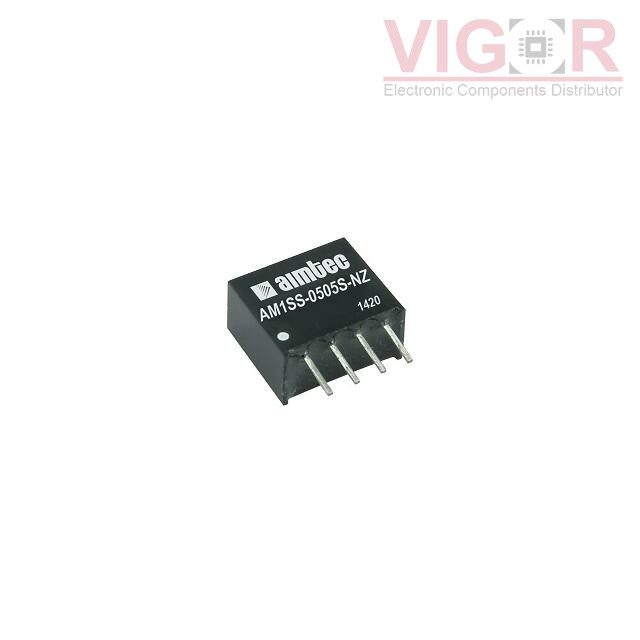

AM1SS-0505SH30Z

Part No :: AM1SS-0505SH30Z

Manufacturer: DComponents

VIGOR # :: 4135351

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: AM1SS-0505SH30Z PDF

Country of origin: -

Date code: -

AM1SS-0505SH30Z Specifications

Type	Description
Series:	AM1SS-Z (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	75%
Mounting Type:	Through Hole
Package / Case:	4-SIP Module
Size / Dimension:	0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
SMU01L-05 Match 91%	MEAN WELL DC DC CONVERTER 5V 1W	AM1SS-0505SH30Z vs SMU01L-05
1MS4A_0505S3UP Match 100%	TE Connectivity AMP Connectors DC-DC	AM1SS-0505SH30Z vs 1MS4A_0505S3UP
RO-0505S/EH Match 95%	RECOM Power DC DC CONVERTER 5V 1W	AM1SS-0505SH30Z vs RO-0505S/EH
TME 0505S Match 86%	TRACO Power DC DC CONVERTER 5V 1W	AM1SS-0505SH30Z vs TME 0505S
TEA 1-0505 Match 91%	TRACO Power DC DC CONVERTER 5V 1W	AM1SS-0505SH30Z vs TEA 1-0505
ROM-0505S Match 100%	RECOM Power DC DC CONVERTER 5V 1W	AM1SS-0505SH30Z vs ROM-0505S

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1487

Shipped from

HK warehouse

Expected Shipping Date

Aug 29 - Sep 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.8100~~	~~$6.81~~

Current price of AM1SS-0505SH30Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

VI-220-MX-S

DC DC CONVERTER 5V 75W

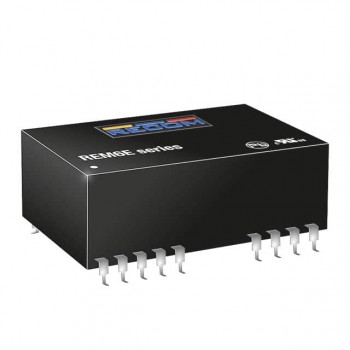

REM6E-4812D/R6/A/SMD/X1
