AM1DR-0512SH30-NZ

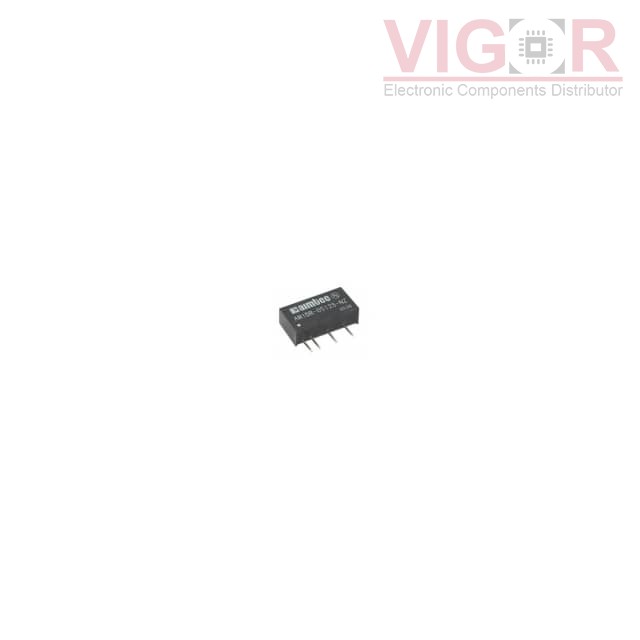

Product image
Product thumb
Part No :

AM1DR-0512SH30-NZ

Manufacturer
DComponents
VIGOR # :

4135492

Description
DC DC CONVERTER 12V 1W
Catalog
DC DC Converters
DataSheet
AM1DR-0512SH30-NZ PDF
Country of origin
-
Date code
-
ads
AM1DR-0512SH30-NZ Specifications
Type Description
Series:AM1DR-NZ (1W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:1
Voltage - Input (Min):4.75V
Voltage - Input (Max):5.25V
Voltage - Output 1:12V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):83mA
Power (Watts):1 W
Voltage - Isolation:3 kV
Applications:ITE (Commercial)
Features:-
Operating Temperature:-40°C ~ 71°C (With Derating)
Efficiency:72%
Mounting Type:Through Hole
Package / Case:7-SIP Module, 4 Leads
Size / Dimension:0.77" L x 0.24" W x 0.37" H (19.6mm x 6.0mm x 9.5mm)
Supplier Device Package:-
Control Features:-
Approval Agency:cULus, cURus
Standard Number:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1177
Shipped from
HK warehouse
Expected Shipping Date
Apr 06 - Apr 10 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $4.6600 $4.66

Current price of AM1DR-0512SH30-NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
