V7809W-500R

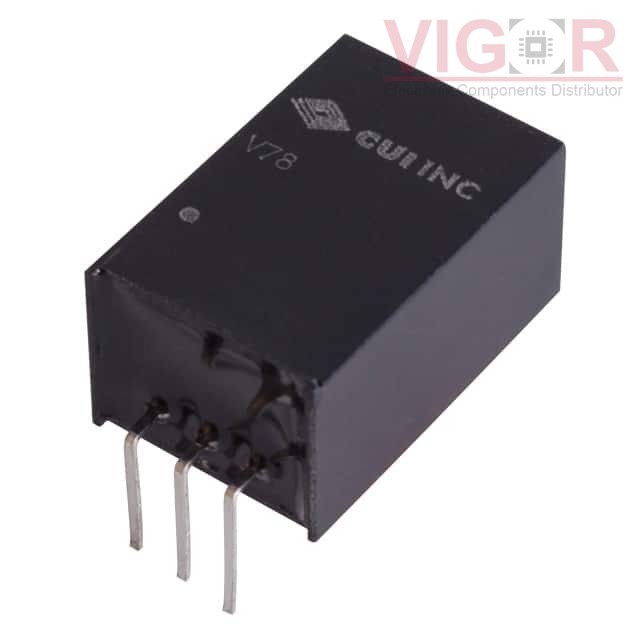

Product image
Product thumb
Part No :

V7809W-500R

Manufacturer
CUI Inc.
VIGOR # :

4136348

Description
DC DC CONVERTER 9V 4.5W
Catalog
DC DC Converters
DataSheet
V7809W-500R PDF
Country of origin
-
Date code
-
ads
V7809W-500R Specifications
Type Description
Series:V78W-500
Package:Tube
Part Status:Active
Type:Linear Regulator Replacement
Number of Outputs:1
Voltage - Input (Min):14V
Voltage - Input (Max):72V
Voltage - Output 1:9V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):500mA
Power (Watts):4.5 W
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:OTP, SCP
Operating Temperature:-40°C ~ 85°C
Efficiency:92%
Mounting Type:Through Hole, Right Angle
Package / Case:3-SIP Module
Size / Dimension:0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
Alternative Products
Part Number Manufacturer & Description Compare
R-78HB9.0-0.5L Match 100%
RECOM Power
DC DC CONVERTER 9V 4.5W
 V7809W-500R vs R-78HB9.0-0.5L
V7806W-500R Match 55%
CUI Inc.
DC DC CONVERTER 6.5V 3.25W
 V7809W-500R vs V7806W-500R
R-78HB6.5-0.5L Match 55%
RECOM Power
DC DC CONVERTER 6.5V 3.25W
 V7809W-500R vs R-78HB6.5-0.5L
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 62
Shipped from
HK warehouse
Expected Shipping Date
Aug 23 - Aug 27 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $10.9100 $10.91
5 $10.8240 $54.12
10 $10.7410 $107.41
44 $10.5759 $465.34
88 $10.2454 $901.60
132 $9.2540 $1 221.53
264 $9.0888 $2 399.43
528 $8.9235 $4 711.61

Current price of V7809W-500R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
