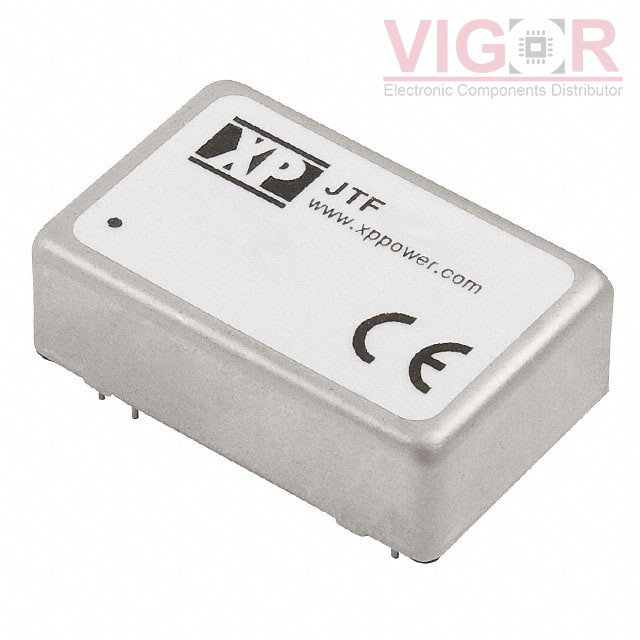

JTF1024S05

Part No :: JTF1024S05

Manufacturer: XP Power

VIGOR # :: 4136499

Description: DC DC CONVERTER 5V 10W

Catalog: DC DC Converters

DataSheet: JTF1024S05 PDF

Country of origin: -

Date code: -

JTF1024S05 Specifications

Type	Description
Series:	JTF (15W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2A
Power (Watts):	10 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP
Operating Temperature:	-40°C ~ 105°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
JTF0824S3V3 Match 57%	XP Power DC DC CONVERTER 3.3V 8W	JTF1024S05 vs JTF0824S3V3
JTF1224S05 Match 87%	XP Power DC DC CONVERTER 5V 12W	JTF1024S05 vs JTF1224S05
JTF1524S05 Match 69%	XP Power DC DC CONVERTER 5.1V 15W	JTF1024S05 vs JTF1524S05
EC7AW-24S05 Match 92%	Cincon DC-DC CONVERTER	JTF1024S05 vs EC7AW-24S05
JTF0824S05 Match 81%	XP Power DC DC CONVERTER 5V 8W	JTF1024S05 vs JTF0824S05
EC7AW-24S05N Match 92%	Cincon DC-DC CONVERTER	JTF1024S05 vs EC7AW-24S05N

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 72

Shipped from

HK warehouse

Expected Shipping Date

Sep 06 - Sep 10 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$29.0000~~	~~$29.00~~
5	~~$28.1300~~	~~$140.65~~
10	~~$27.2600~~	~~$272.60~~
25	~~$26.1000~~	~~$652.50~~
100	~~$24.5050~~	~~$2 450.50~~

Current price of JTF1024S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
