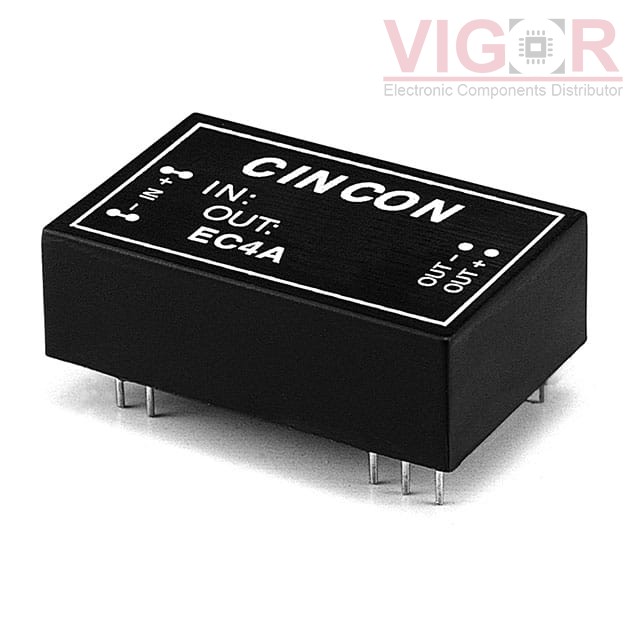

EC4A22H

Part No :: EC4A22H

Manufacturer: Cincon

VIGOR # :: 4137022

Description: DC DC CONVERTER 12V 5.6W

Catalog: DC DC Converters

DataSheet: EC4A22H PDF

Country of origin: -

Date code: -

EC4A22H Specifications

Type	Description
Series:	EC4A (6W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	72V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	470mA
Power (Watts):	5.6 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-25°C ~ 71°C
Efficiency:	83%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 14 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
EC4AB22H Match 100%	Cincon DC DC CONVERTER 12V 5.6W	EC4A22H vs EC4AB22H
EC4AW12H Match 100%	Cincon DC DC CONVERTER 12V 5.6W	EC4A22H vs EC4AW12H
JTB0548S12 Match 89%	XP Power DC DC CONVERTER 12V 6W	EC4A22H vs JTB0548S12
EC4AB22HT Match 100%	Cincon DC DC CONVERTER 12V 5.6W	EC4A22H vs EC4AB22HT
EC4AW12HM Match 91%	Cincon DC DC CONVERTER 12V 5.6W	EC4A22H vs EC4AW12HM
EC4A22HM Match 91%	Cincon DC DC CONVERTER 12V 5.6W	EC4A22H vs EC4A22HM

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 126

Shipped from

HK warehouse

Expected Shipping Date

Aug 30 - Sep 03 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$12.9200~~	~~$12.92~~
5	~~$12.7900~~	~~$63.95~~
10	~~$12.6630~~	~~$126.63~~
25	~~$12.4097~~	~~$310.24~~
50	~~$12.0373~~	~~$601.87~~
100	~~$11.5559~~	~~$1 155.59~~

Current price of EC4A22H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
