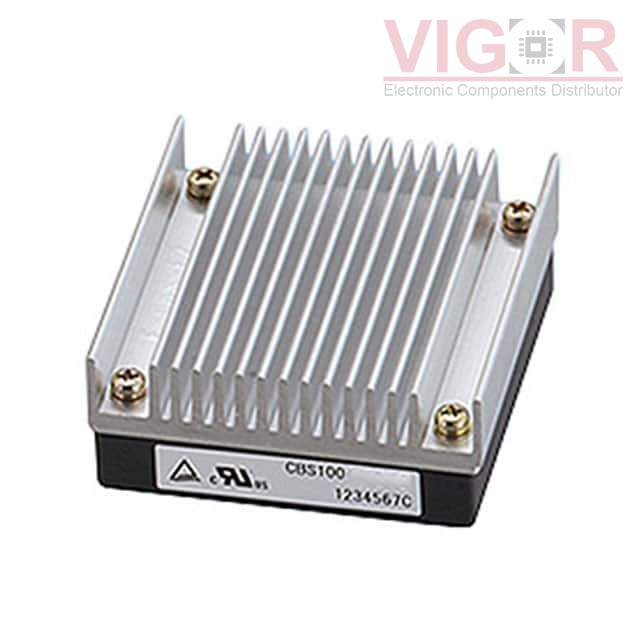

CBS1002403-F2

Part No :: CBS1002403-F2

Manufacturer: Cosel

VIGOR # :: 4138255

Description: DC DC CONVERTER 3.3V 77W

Catalog: DC DC Converters

DataSheet: CBS1002403-F2 PDF

Country of origin: -

Date code: -

CBS1002403-F2 Specifications

Type	Description
Series:	CBS (100W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	23.4A
Power (Watts):	77 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP
Operating Temperature:	-40°C ~ 100°C (With Derating)
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	Half Brick
Size / Dimension:	2.44" L x 2.34" W x 1.04" H (62.0mm x 59.5mm x 26.5mm)
Supplier Device Package:	Half Brick
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CBS1002403 Match 100%	Cosel DC DC CONVERTER 3.3V 77W	CBS1002403-F2 vs CBS1002403
CBS1002403-F5 Match 100%	Cosel DC DC CONVERTER 3.3V 77W	CBS1002403-F2 vs CBS1002403-F5
CBS1002403-F1 Match 100%	Cosel DC DC CONVERTER 3.3V 77W	CBS1002403-F2 vs CBS1002403-F1
CBS1002403-T Match 100%	Cosel DC DC CONVERTER 3.3V 77W	CBS1002403-F2 vs CBS1002403-T
CBS1002403-RF1 Match 100%	Cosel DC DC CONVERTER 3.3V 77W	CBS1002403-F2 vs CBS1002403-RF1
CBS1002403-R Match 100%	Cosel DC DC CONVERTER 3.3V 77W	CBS1002403-F2 vs CBS1002403-R
