IMM0524D12

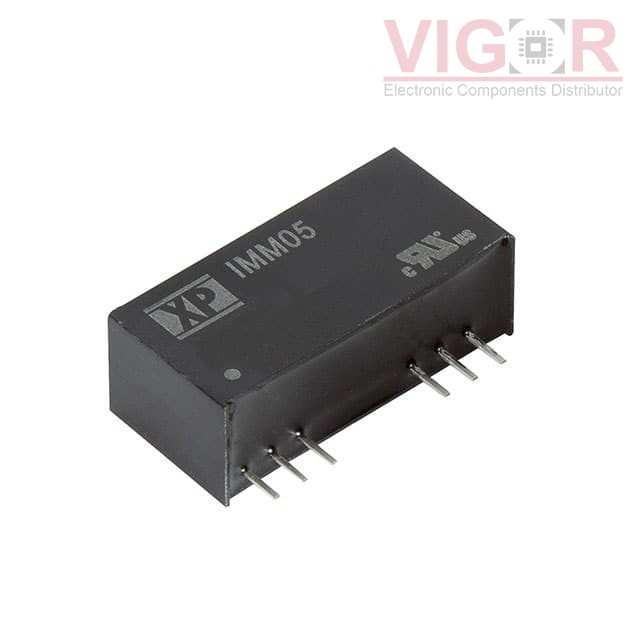

Product image
Product thumb
Part No :

IMM0524D12

Manufacturer
XP Power
VIGOR # :

4139150

Description
DC DC CONVERTER +/-12V 5W
Catalog
DC DC Converters
DataSheet
IMM0524D12 PDF
Country of origin
-
Date code
-
ads
IMM0524D12 Specifications
Type Description
Series:IMM05 (5W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):18V
Voltage - Input (Max):36V
Voltage - Output 1:12V
Voltage - Output 2:-12V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):208mA, 208mA
Power (Watts):5 W
Voltage - Isolation:1.5 kV
Applications:Medical
Features:Remote On/Off, OCP, SCP
Operating Temperature:-20°C ~ 100°C (With Derating)
Efficiency:82%
Mounting Type:Through Hole
Package / Case:9-SIP Module, 6 Leads
Size / Dimension:1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm)
Supplier Device Package:-
Control Features:-
Approval Agency:CB, CSA, TUV, UL
Standard Number:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1503
Shipped from
HK warehouse
Expected Shipping Date
Jan 12 - Jan 16 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $22.00 $22.00
5 $21.34 $106.70
10 $20.68 $206.80
25 $19.80 $495.00
100 $18.48 $1 848.01

Current price of IMM0524D12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
