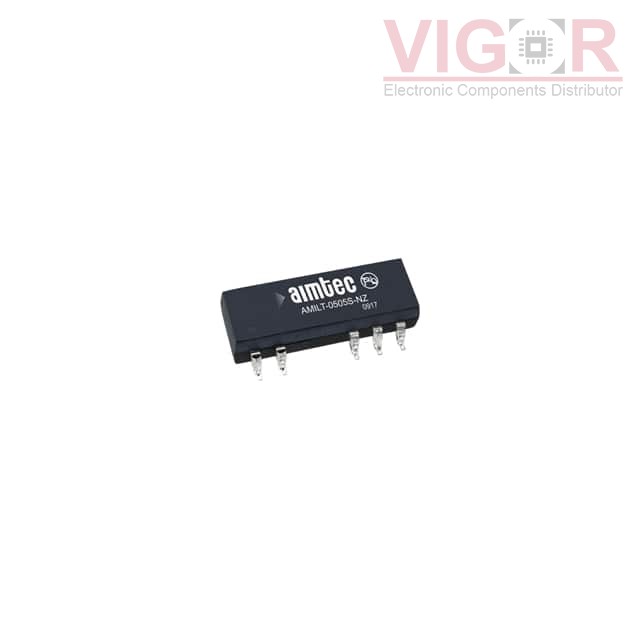

AM1LT-0505SH30-NZTR

Part No :: AM1LT-0505SH30-NZTR

Manufacturer: DComponents

VIGOR # :: 4140153

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: AM1LT-0505SH30-NZTR PDF

Country of origin: -

Date code: -

AM1LT-0505SH30-NZTR Specifications

Type	Description
Series:	AM1LT-NZ (1W)
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.75V
Voltage - Input (Max):	5.25V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	70%
Mounting Type:	Surface Mount
Package / Case:	14-SMD Module, 7 Leads
Size / Dimension:	0.77" L x 0.26" W x 0.20" H (19.5mm x 6.6mm x 5.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
ISB0105S05 Match 91%	XP Power DC DC CONVERTER 5V 1W	AM1LT-0505SH30-NZTR vs ISB0105S05
B0505MT-1WR4 Match 100%	Mornsun DC DC CONVERTER 5V 1W	AM1LT-0505SH30-NZTR vs B0505MT-1WR4
DCV010505P-U Match 91%	Texas Instruments DC DC CONVERTER 5V 1W	AM1LT-0505SH30-NZTR vs DCV010505P-U
DCP010505BP-U/700 Match 86%	Texas Instruments DC DC CONVERTER 5V 1W	AM1LT-0505SH30-NZTR vs DCP010505BP-U/700
DCV010505P-U/700 Match 91%	Texas Instruments DC DC CONVERTER 5V 1W	AM1LT-0505SH30-NZTR vs DCV010505P-U/700
AM1LT-0505S-NZTR Match 91%	DComponents DC DC CONVERTER 5V 1W	AM1LT-0505SH30-NZTR vs AM1LT-0505S-NZTR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1288

Shipped from

HK warehouse

Expected Shipping Date

Nov 04 - Nov 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.0400~~	~~$6.04~~

Current price of AM1LT-0505SH30-NZTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
