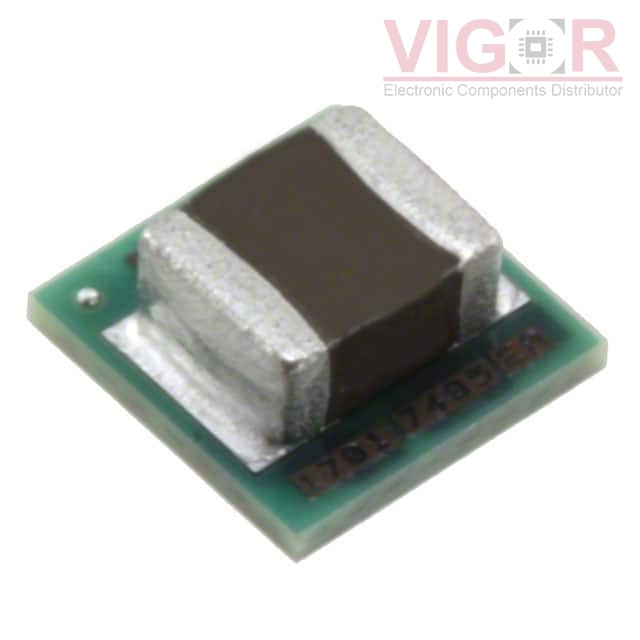

LMZ20501SILR

Part No :: LMZ20501SILR

Manufacturer: Texas Instruments

VIGOR # :: 4140387

Description: DC DC CONVERTER 0.8-3.6V 4W

Catalog: DC DC Converters

DataSheet: LMZ20501SILR PDF

Country of origin: -

Date code: -

LMZ20501SILR Specifications

Type	Description
Series:	SIMPLE SWITCHER® Nano
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	2.7V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.8 ~ 3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature:	-40°C ~ 125°C
Efficiency:	93%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module
Size / Dimension:	0.14" L x 0.14" W x 0.07" H (3.5mm x 3.5mm x 1.8mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
LMZ10501SEE/NOPB Match 100%	VIGOR SWITCHING REGULATOR/CONTROLLER	LMZ20501SILR vs LMZ10501SEE/NOPB
LMZ10501SEX/NOPB Match 100%	VIGOR SWITCHING REGULATOR/CONTROLLER	LMZ20501SILR vs LMZ10501SEX/NOPB
LMZ10501SE/NOPB Match 100%	VIGOR SWITCHING REGULATOR/CONTROLLER	LMZ20501SILR vs LMZ10501SE/NOPB
LMZ20501SILT Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V	LMZ20501SILR vs LMZ20501SILT
LMZ10501SHX/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.6-3.6V	LMZ20501SILR vs LMZ10501SHX/NOPB
LMZ10501SH/NOPB Match 100%	Texas Instruments DC DC CONVERTER 0.6-3.6V	LMZ20501SILR vs LMZ10501SH/NOPB

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3395

Shipped from

HK warehouse

Expected Shipping Date

Sep 05 - Sep 09 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.9300~~	~~$3.93~~
3000	~~$2.0153~~	~~$6 045.96~~

Current price of LMZ20501SILR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
