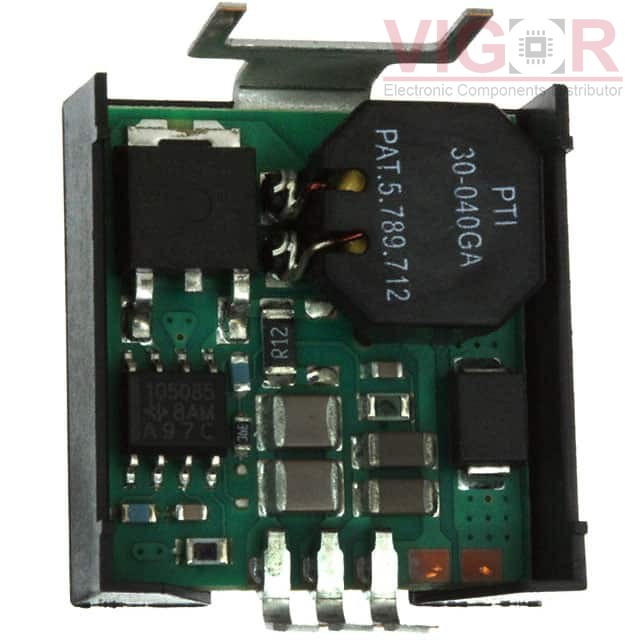

PT78ST136H

Part No :: PT78ST136H

Manufacturer: VIGOR

VIGOR # :: 4140821

Description: SWITCHING REGLTR, VOLTAGE-MODE

Catalog: DC DC Converters

DataSheet: PT78ST136H PDF

Country of origin: -

Date code: -

PT78ST136H Specifications

Type	Description
Series:	PT78ST100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	26V
Voltage - Output 1:	3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	80%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
VX7803-1000R Match 62%	CUI Inc. DC DC CONVERTER 3.3V 3.3W	PT78ST136H vs VX7803-1000R
PT78ST105H Match 55%	Texas Instruments DC DC CONVERTER 5V	PT78ST136H vs PT78ST105H
78ST133HC Match 88%	Texas Instruments DC DC CONVERTER 3.3V	PT78ST136H vs 78ST133HC
78SR105HC Match 55%	Texas Instruments DC DC CONVERTER 5V	PT78ST136H vs 78SR105HC
PT78ST133H Match 88%	Texas Instruments DC DC CONVERTER 3.3V	PT78ST136H vs PT78ST133H
78ST136HC Match 100%	Texas Instruments DC DC CONVERTER 3.6V	PT78ST136H vs 78ST136HC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 459

Shipped from

HK warehouse

Expected Shipping Date

Sep 09 - Sep 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$8.0800~~	~~$8.08~~

Current price of PT78ST136H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
