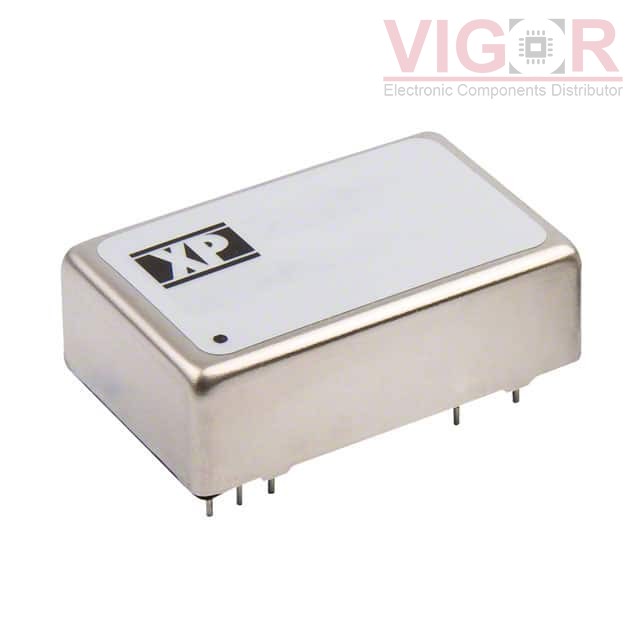

JCG1224S12

Part No :: JCG1224S12

Manufacturer: XP Power

VIGOR # :: 4141024

Description: DC DC CONVERTER 12V 12W

Catalog: DC DC Converters

DataSheet: JCG1224S12 PDF

Country of origin: -

Date code: -

JCG1224S12 Specifications

Type	Description
Series:	JCG (12W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	12 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
JTF1548S12 Match 84%	XP Power DC DC CONVERTER 12V 15W	JCG1224S12 vs JTF1548S12
JTF1524S12 Match 84%	XP Power DC DC CONVERTER 12V 15W	JCG1224S12 vs JTF1524S12
JCG1524S12 Match 84%	XP Power DC DC CONVERTER 12V 15W	JCG1224S12 vs JCG1524S12
JTF1224S12 Match 100%	XP Power DC DC CONVERTER 12V 12W	JCG1224S12 vs JTF1224S12
JTF1248S12 Match 100%	XP Power DC DC CONVERTER 12V 12W	JCG1224S12 vs JTF1248S12
EC7AW-48S12N Match 79%	Cincon DC-DC CONVERTER	JCG1224S12 vs EC7AW-48S12N

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 894

Shipped from

HK warehouse

Expected Shipping Date

Jul 24 - Jul 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$30.0000~~	~~$30.00~~
5	~~$29.1000~~	~~$145.50~~
10	~~$28.2000~~	~~$282.00~~
25	~~$27.0000~~	~~$675.00~~
100	~~$25.2000~~	~~$2 520.00~~
