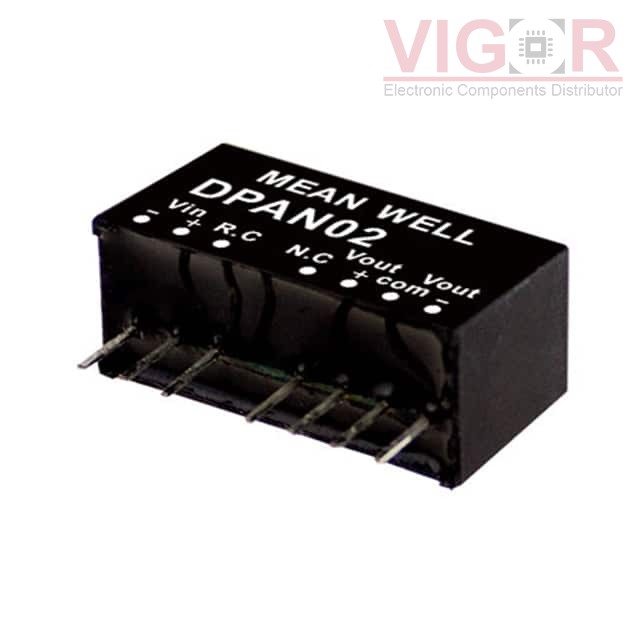

DPAN02A-05

Image is for reference,
please contact us to get the real picture

Part No :: DPAN02A-05

Manufacturer: MEAN WELL

Description: DC DC CONVERTER +/-5V 2W

Catalog: DC DC Converters

DataSheet: DPAN02A-05 PDF

Availability: 1634 pieces

Unit Price: ~~$8.14000~~

Current price of DPAN02A-05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DPAN02A-05 Specifications

Type	Description
Series:	DPAN02 (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA, 200mA
Power (Watts):	2 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, SCP, UVLO
Operating Temperature:	-40°C ~ 90°C (With Derating)
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	8-SIP Module, 7 Leads
Size / Dimension:	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
