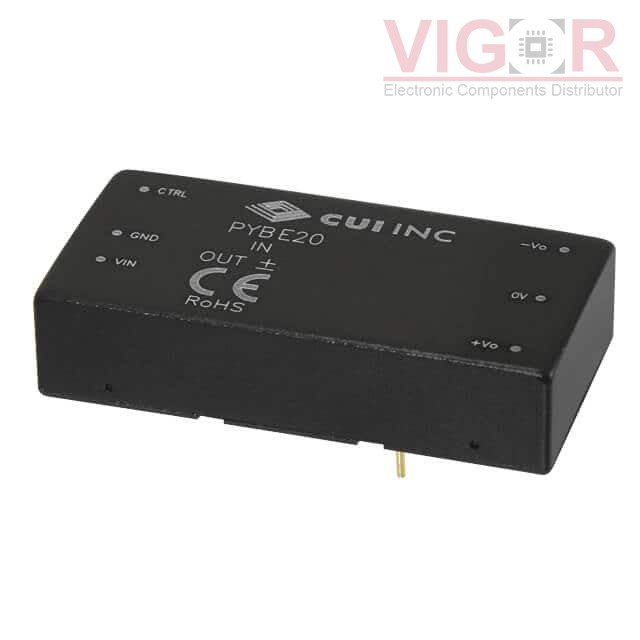

PYBE20-Q24-S12

Part No :: PYBE20-Q24-S12

Manufacturer: CUI Inc.

VIGOR # :: 4142939

Description: DC DC CONVERTER 12V 20W

Catalog: DC DC Converters

DataSheet: PYBE20-Q24-S12 PDF

Country of origin: -

Date code: -

PYBE20-Q24-S12 Specifications

Type	Description
Series:	PYBE20 (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.667A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 60950-1

Alternative Products

Part Number	Manufacturer & Description	Compare
RPA20-2412SAW Match 99%	RECOM Power DC DC CONVERTER 12V 20W	PYBE20-Q24-S12 vs RPA20-2412SAW
JTK2024S12 Match 99%	XP Power DC DC CONVERTER 12V 20W	PYBE20-Q24-S12 vs JTK2024S12
EC4SBW-24S12N Match 100%	Cincon DC DC CONVERTER 12V 20W	PYBE20-Q24-S12 vs EC4SBW-24S12N
PDQE20-Q24-S12-D Match 100%	CUI Inc. DC DC CONVERTER 12V 20W	PYBE20-Q24-S12 vs PDQE20-Q24-S12-D
URB2412YMD-20WR3 Match 100%	Mornsun DC DC CONVERTER 12V 20W	PYBE20-Q24-S12 vs URB2412YMD-20WR3
PYB20-Q24-S12 Match 100%	CUI Inc. DC DC CONVERTER 12V 20W	PYBE20-Q24-S12 vs PYB20-Q24-S12

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 94

Shipped from

HK warehouse

Expected Shipping Date

Sep 01 - Sep 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$24.6000~~	~~$24.60~~
5	~~$24.4140~~	~~$122.07~~
19	~~$24.2242~~	~~$460.26~~
38	~~$23.8455~~	~~$906.13~~
57	~~$22.7100~~	~~$1 294.47~~
114	~~$20.8175~~	~~$2 373.20~~
266	~~$20.4390~~	~~$5 436.77~~

Current price of PYBE20-Q24-S12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
