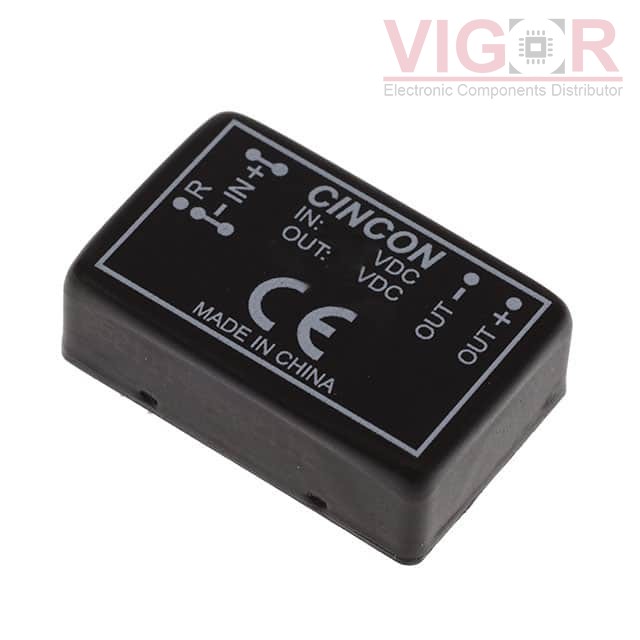

EC7AW-24S15

Part No :: EC7AW-24S15

Manufacturer: Cincon

VIGOR # :: 4143285

Description: DC-DC CONVERTER

Catalog: DC DC Converters

DataSheet: EC7AW-24S15 PDF

Country of origin: -

Date code: -

EC7AW-24S15 Specifications

Type	Description
Series:	EC7AW (10W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	666mA
Power (Watts):	10 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, Baseplate, Remote On/Off
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	89.5%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	CE
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
JTF1224S15 Match 79%	XP Power DC DC CONVERTER 15V 12W	EC7AW-24S15 vs JTF1224S15
JTF1024S15 Match 92%	XP Power DC DC CONVERTER 15V 10W	EC7AW-24S15 vs JTF1024S15
EC7AW-24S12 Match 71%	Cincon DC-DC CONVERTER	EC7AW-24S15 vs EC7AW-24S12
JTF0824S15 Match 76%	XP Power DC DC CONVERTER 15V 8W	EC7AW-24S15 vs JTF0824S15
EC7AW-24S15N Match 100%	Cincon DC-DC CONVERTER	EC7AW-24S15 vs EC7AW-24S15N
EC7AW-24S12N Match 71%	Cincon DC-DC CONVERTER	EC7AW-24S15 vs EC7AW-24S12N

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 50

Shipped from

HK warehouse

Expected Shipping Date

Sep 01 - Sep 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$25.4500~~	~~$25.45~~

Current price of EC7AW-24S15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
