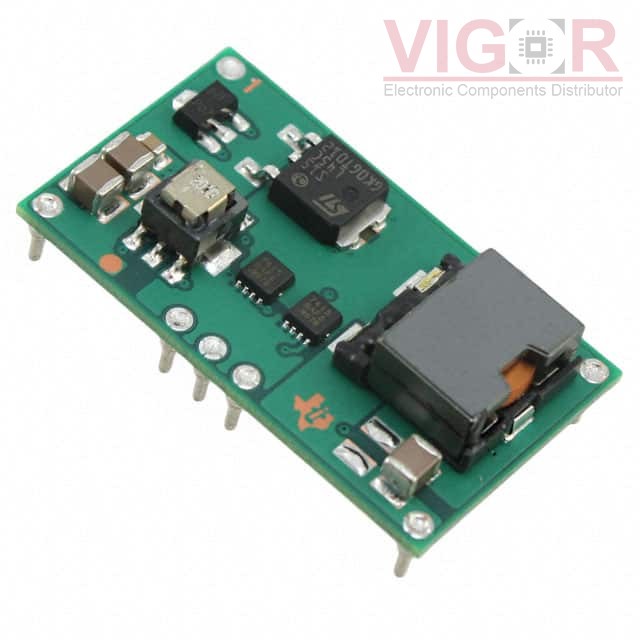

PTN78020WAH

Part No :: PTN78020WAH

Manufacturer: Texas Instruments

VIGOR # :: 4145075

Description: DC DC CONVERTER 2.5-12.6V

Catalog: DC DC Converters

DataSheet: PTN78020WAH PDF

Country of origin: -

Date code: -

PTN78020WAH Specifications

Type	Description
Series:	PTN78020W
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	7V
Voltage - Input (Max):	36V
Voltage - Output 1:	2.5 ~ 12.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	94%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module
Size / Dimension:	1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
