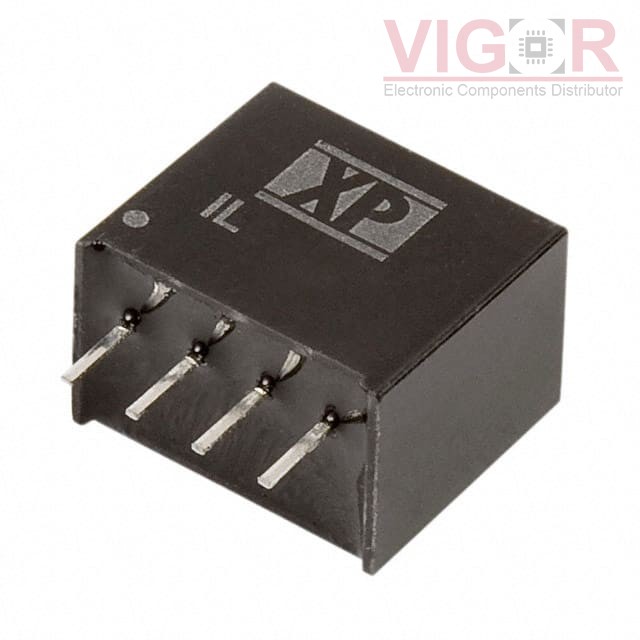

IL0505S

Part No :: IL0505S

Manufacturer: XP Power

VIGOR # :: 4145416

Description: DC DC CONVERTER 5V 2W

Catalog: DC DC Converters

DataSheet: IL0505S PDF

Country of origin: -

Date code: -

IL0505S Specifications

Type	Description
Series:	IL (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	400mA
Power (Watts):	2 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	77%
Mounting Type:	Through Hole
Package / Case:	4-SIP Module
Size / Dimension:	0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM2S-0505SZ Match 100%	DComponents DC DC CONVERTER 5V 2W	IL0505S vs AM2S-0505SZ
2S4E_0505S1U Match 100%	TE Connectivity AMP Connectors DC-DC	IL0505S vs 2S4E_0505S1U
NML0505SC Match 100%	Murata Power Solutions DC DC CONVERTER 5V 2W	IL0505S vs NML0505SC
RI-0505S Match 100%	RECOM Power DC DC CONVERTER 5V 2W	IL0505S vs RI-0505S
CRL2S0505SC Match 100%	Murata Power Solutions DC DC CONVERTER 5V 2W	IL0505S vs CRL2S0505SC
RI-0505S/P Match 100%	RECOM Power DC DC CONVERTER 5V 2W	IL0505S vs RI-0505S/P

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 520

Shipped from

HK warehouse

Expected Shipping Date

Aug 31 - Sep 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.0000~~	~~$7.00~~
5	~~$6.7900~~	~~$33.95~~
10	~~$6.5800~~	~~$65.80~~
25	~~$6.3000~~	~~$157.50~~
100	~~$5.8800~~	~~$588.00~~

Current price of IL0505S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

XCL102E413CR-G

INDUCTOR BUILT-IN STEP-UP MICRO

V300C3V3C50BN3

DC DC CONVERTER 3.3V 50W

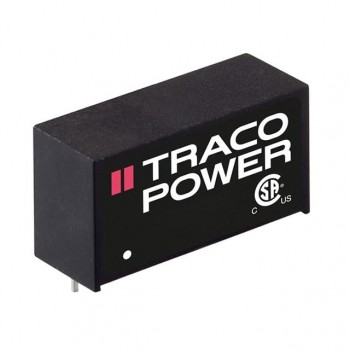

TMV 2405D
