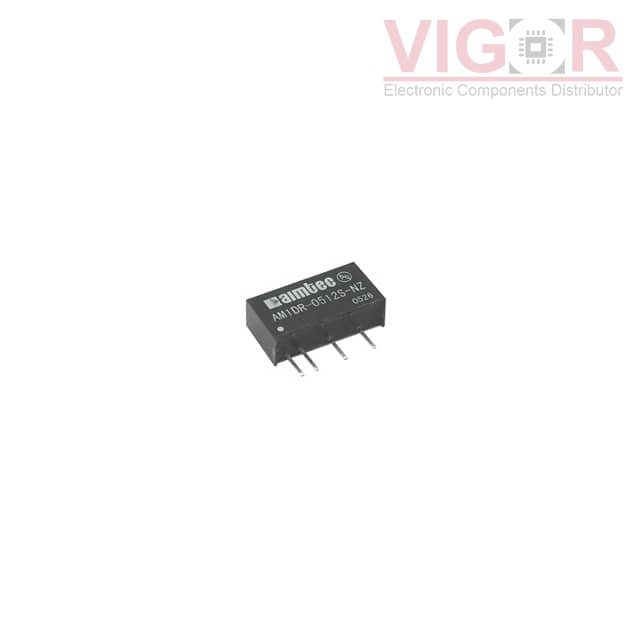

AM1DR-0509S-RZ

Part No :: AM1DR-0509S-RZ

Manufacturer: DComponents

VIGOR # :: 4146348

Description: DC DC CONVERTER 9V 1W

Catalog: DC DC Converters

DataSheet: AM1DR-0509S-RZ PDF

Country of origin: -

Date code: -

AM1DR-0509S-RZ Specifications

Type	Description
Series:	AM1DR-RZ (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	111mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	67%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PDME1-S5-S9-S Match 95%	CUI Inc. DC DC CONVERTER 9V 1W	AM1DR-0509S-RZ vs PDME1-S5-S9-S
RE-0509S/HP Match 91%	RECOM Power DC DC CONVERTER 9V 1W	AM1DR-0509S-RZ vs RE-0509S/HP
R05P09S/P/R6.4 Match 86%	RECOM Power DC DC CONVERTER 9V 1W	AM1DR-0509S-RZ vs R05P09S/P/R6.4
R05P09S/P/R8 Match 86%	RECOM Power DC DC CONVERTER 9V 1W	AM1DR-0509S-RZ vs R05P09S/P/R8
RP-0509S/P/X2 Match 86%	RECOM Power DC DC CONVERTER 9V 1W	AM1DR-0509S-RZ vs RP-0509S/P/X2
RP-0509S/X2 Match 86%	RECOM Power DC DC CONVERTER 9V 1W	AM1DR-0509S-RZ vs RP-0509S/X2

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1783

Shipped from

HK warehouse

Expected Shipping Date

Aug 23 - Aug 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.2700~~	~~$7.27~~

Current price of AM1DR-0509S-RZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

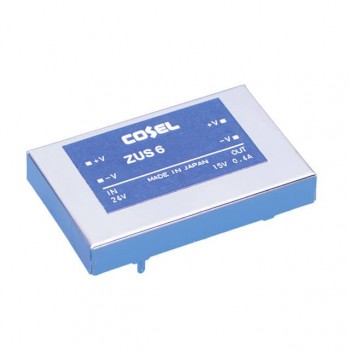

ZUS6053R3-A
