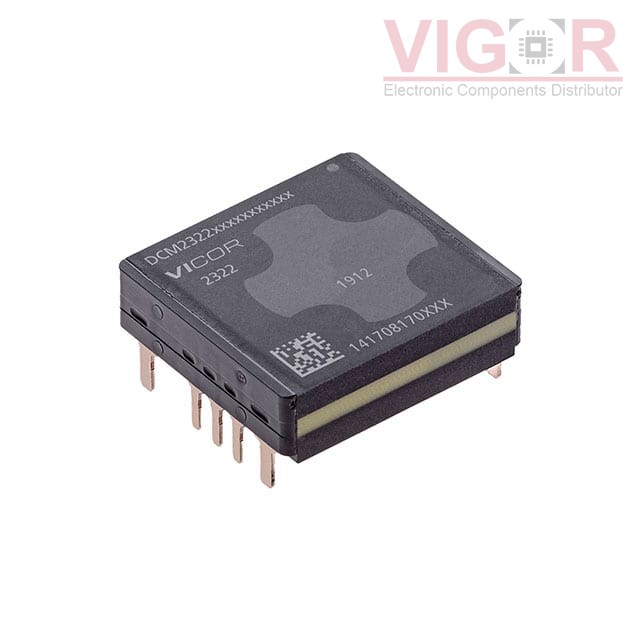

DCM2322T72S13A0T60

Part No :: DCM2322T72S13A0T60

Manufacturer: Vicor

VIGOR # :: 4147617

Description: DC DC CONVERTER 12V 100W

Catalog: DC DC Converters

DataSheet: DCM2322T72S13A0T60 PDF

Country of origin: -

Date code: -

DCM2322T72S13A0T60 Specifications

Type	Description
Series:	VI Chip® DCM®
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	14V
Voltage - Input (Max):	72V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	8.33A
Power (Watts):	100 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output
Operating Temperature:	-40°C ~ 125°C
Efficiency:	93%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cTUVus, cURus
Standard Number:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1773

Shipped from

HK warehouse

Expected Shipping Date

Jan 08 - Jan 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$125.73~~	~~$125.73~~

Current price of DCM2322T72S13A0T60 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

V48C28E75BL

DC DC CONVERTER 28V 75W

AVD85-48S05-6L

DC DC CONVERTER 5V 85W

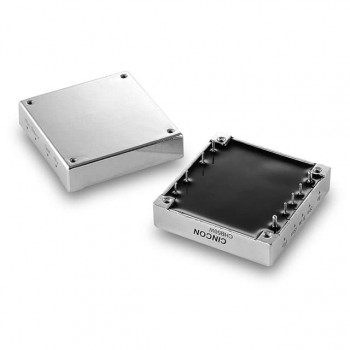

CHB50W-24S24
