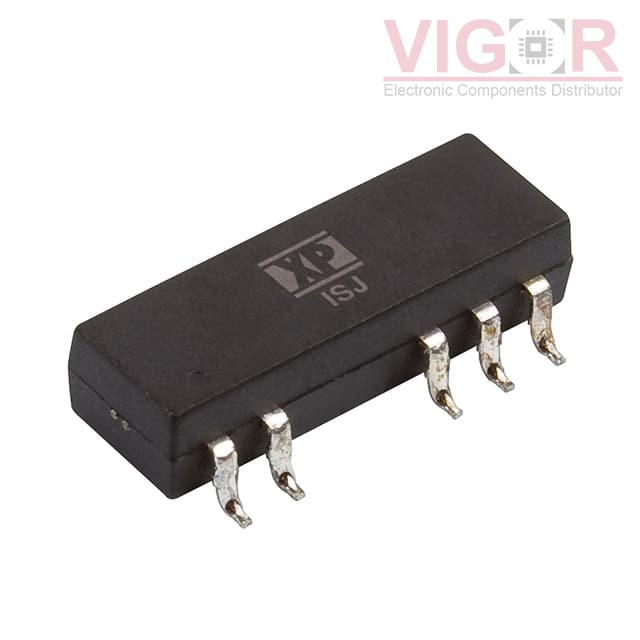

ISJ0505A

Part No :: ISJ0505A

Manufacturer: XP Power

VIGOR # :: 4148194

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: ISJ0505A PDF

Country of origin: -

Date code: -

ISJ0505A Specifications

Type	Description
Series:	ISJ (1W)
Package:	Tube
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	74%
Mounting Type:	Surface Mount
Package / Case:	14-SMD Module, 7 Leads
Size / Dimension:	0.77" L x 0.26" W x 0.20" H (19.5mm x 6.6mm x 5.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
ISB0105S05 Match 100%	XP Power DC DC CONVERTER 5V 1W	ISJ0505A vs ISB0105S05
DCV010505P-U Match 100%	Texas Instruments DC DC CONVERTER 5V 1W	ISJ0505A vs DCV010505P-U
DCP010505BP-U/700 Match 95%	Texas Instruments DC DC CONVERTER 5V 1W	ISJ0505A vs DCP010505BP-U/700
DCP010505BP-UG4 Match 95%	Texas Instruments DC DC CONVERTER 5V 1W	ISJ0505A vs DCP010505BP-UG4
DCV010505P-U/700 Match 100%	Texas Instruments DC DC CONVERTER 5V 1W	ISJ0505A vs DCV010505P-U/700
AM1LT-0505S-NZTR Match 100%	DComponents DC DC CONVERTER 5V 1W	ISJ0505A vs AM1LT-0505S-NZTR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 183

Shipped from

HK warehouse

Expected Shipping Date

Aug 03 - Aug 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$8.4000~~	~~$8.40~~
5	~~$8.1480~~	~~$40.74~~
10	~~$7.8960~~	~~$78.96~~
25	~~$7.5600~~	~~$189.00~~
100	~~$7.0560~~	~~$705.60~~

Current price of ISJ0505A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
