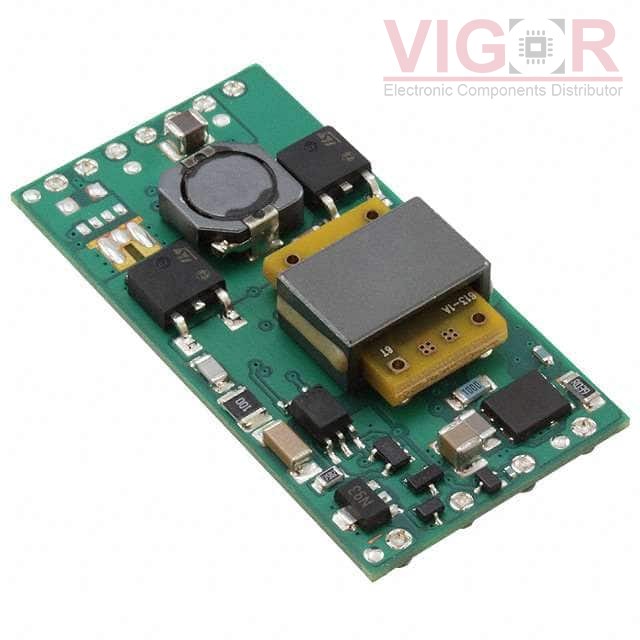

PTB78560AAZ

Part No :: PTB78560AAZ

Manufacturer: Texas Instruments

VIGOR # :: 4149047

Description: DC DC CONVERTER 3.6-5.5V 30W

Catalog: DC DC Converters

DataSheet: PTB78560AAZ PDF

Country of origin: -

Date code: -

PTB78560AAZ Specifications

Type	Description
Series:	PTB78560 (30W)
Package:	Tray
Part Status:	Not For New Designs
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	60V
Voltage - Output 1:	3.6 ~ 5.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	30 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	83%
Mounting Type:	Surface Mount
Package / Case:	11-SMD Module
Size / Dimension:	2.04" L x 1.04" W x 0.40" H (51.8mm x 26.5mm x 10.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
