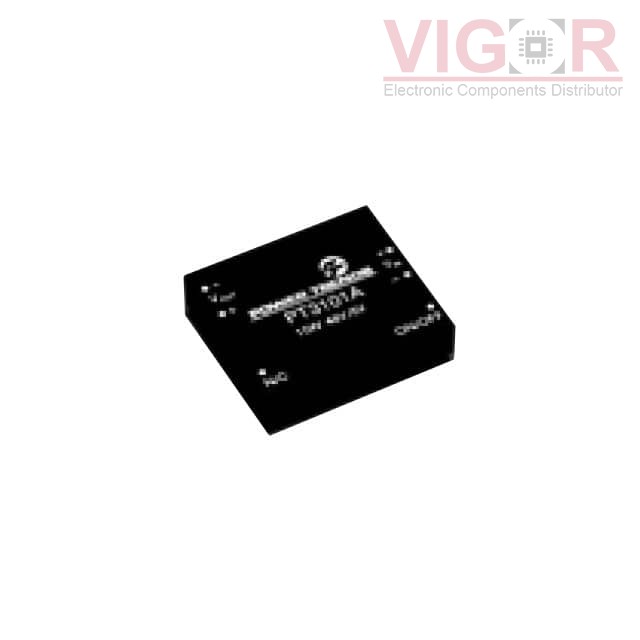

PT3104A

Part No :: PT3104A

Manufacturer: VIGOR

VIGOR # :: 4149595

Description: DC-DC POWER SUPPLY MODULE

Catalog: DC DC Converters

DataSheet: PT3104A PDF

Country of origin: -

Date code: -

PT3104A Specifications

Type	Description
Series:	PT3100 (15W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	40V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	15 W
Voltage - Isolation:	500 V
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-20°C ~ 70°C
Efficiency:	80%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	1.67" L x 1.48" W x 0.33" H (42.4mm x 37.6mm x 8.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
EC5BW-48S05 Match 86%	Cincon DC DC CONVERTER 5V 15W	PT3104A vs EC5BW-48S05
CP15B1130036P Match 86%	Semiconductor Circuits, Inc. DC DC CONVERTER 5V 15W	PT3104A vs CP15B1130036P
CP15B1130036N Match 86%	Semiconductor Circuits, Inc. DC DC CONVERTER 5V 15W	PT3104A vs CP15B1130036N
REC15E-4805SZ Match 86%	RECOM Power DC DC CONVERTER 5V 15W	PT3104A vs REC15E-4805SZ
PXG-M15-48WS05 Match 86%	TDK-Lambda, Inc. DC DC CONVERTER 5V 15W	PT3104A vs PXG-M15-48WS05
THN 15-4811WI-A1 Match 86%	TRACO Power DC DC CONVERTER 5V 15W	PT3104A vs THN 15-4811WI-A1

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 353

Shipped from

HK warehouse

Expected Shipping Date

Jul 24 - Jul 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$51.0800~~	~~$51.08~~

Current price of PT3104A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
