AM2DS-1205SH52Z

Part No :: AM2DS-1205SH52Z

Manufacturer: DComponents

VIGOR # :: 4149711

Description: DC DC CONVERTER 5V 2W

Catalog: DC DC Converters

DataSheet: AM2DS-1205SH52Z PDF

Country of origin: -

Date code: -

AM2DS-1205SH52Z Specifications

Type	Description
Series:	AM2DS-Z (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	400mA
Power (Watts):	2 W
Voltage - Isolation:	5.2 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 65°C (With Derating)
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
IHL0212S05 Match 100%	XP Power DC DC CONVERTER 5V 2W	AM2DS-1205SH52Z vs IHL0212S05
R12P205S/P Match 97%	RECOM Power DC DC CONVERTER 5V 2W	AM2DS-1205SH52Z vs R12P205S/P
RKZE-1205S/H Match 97%	RECOM Power DC DC CONVERTER 5V 2W	AM2DS-1205SH52Z vs RKZE-1205S/H
AM2D-1205SH60Z Match 98%	DComponents DC DC CONVERTER 5V 2W	AM2DS-1205SH52Z vs AM2D-1205SH60Z
AM2D-1205SH40Z Match 97%	DComponents DC DC CONVERTER 5V 2W	AM2DS-1205SH52Z vs AM2D-1205SH40Z
2S7BE_1205S6U Match 98%	TE Connectivity AMP Connectors DC-DC	AM2DS-1205SH52Z vs 2S7BE_1205S6U

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1614

Shipped from

HK warehouse

Expected Shipping Date

Jul 27 - Jul 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$8.2600~~	~~$8.26~~

Current price of AM2DS-1205SH52Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

VI-JW2-CY-F2

DC DC CONVERTER 15V 50W

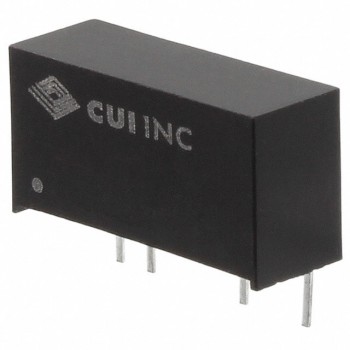

PEM2-S12-S15-S
