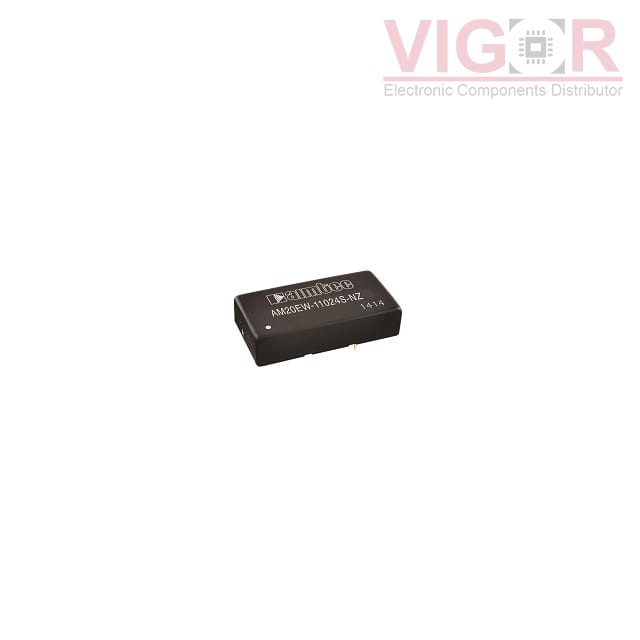

AM20EW-11015SH22-NZ-K

Part No :: AM20EW-11015SH22-NZ-K

Manufacturer: DComponents

VIGOR # :: 4150036

Description: DC DC CONVERTER 15V 20W

Catalog: DC DC Converters

DataSheet: AM20EW-11015SH22-NZ-K PDF

Country of origin: Confirming

Date code: TBC

AM20EW-11015SH22-NZ-K Specifications

Type	Description
Series:	AM20EW-NZ (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	40V
Voltage - Input (Max):	160V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.333A
Power (Watts):	20 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, Heat Sink, Remote On/Off
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.65" H (50.8mm x 25.4mm x 16.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
RSDW20UW-15 Match 96%	MEAN WELL DC/DC MODULE 20W,I/P: 8.5-160VDC	AM20EW-11015SH22-NZ-K vs RSDW20UW-15
ERM01C110 Match 96%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 15V 20W	AM20EW-11015SH22-NZ-K vs ERM01C110
AM20EW-11015SH22-NZ Match 100%	DComponents DC DC CONVERTER 15V 20W	AM20EW-11015SH22-NZ-K vs AM20EW-11015SH22-NZ
EC7BW18-72S15-ECRT Match 96%	Cincon DC-DC CONV	AM20EW-11015SH22-NZ-K vs EC7BW18-72S15-ECRT
EC7BW18-72S15-EDRT Match 96%	Cincon DC-DC CONV	AM20EW-11015SH22-NZ-K vs EC7BW18-72S15-EDRT
EC7BW18-72S15 Match 96%	Cincon DC DC CONVERTER 15V 20W	AM20EW-11015SH22-NZ-K vs EC7BW18-72S15

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 676

Shipped from

HK warehouse

Expected Shipping Date

Nov 15 - Nov 19 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$36.6100~~	~~$36.61~~

Current price of AM20EW-11015SH22-NZ-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
