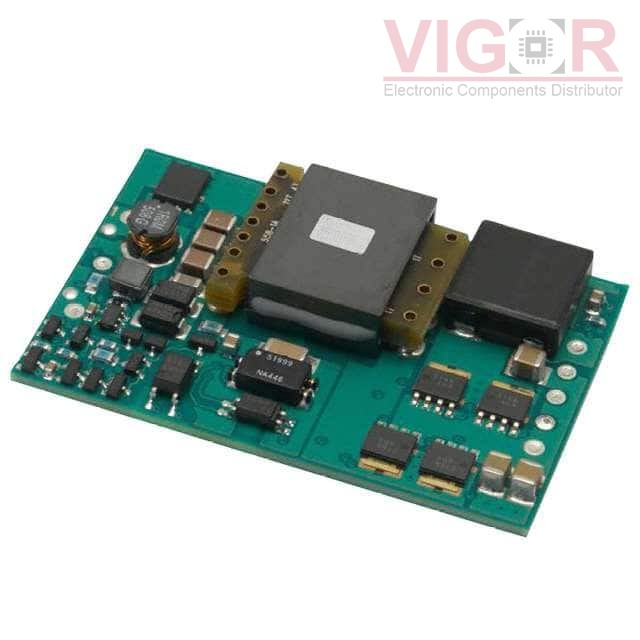

PTQA420050N2AZ

Part No :: PTQA420050N2AZ

Manufacturer: VIGOR

VIGOR # :: 4151579

Description: DC-DC REGULATED POWER SUPPLY MOD

Catalog: DC DC Converters

DataSheet: PTQA420050N2AZ PDF

Country of origin: -

Date code: -

PTQA420050N2AZ Specifications

Type	Description
Series:	PTQA420050 (100W)
Package:	Bulk
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	100 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	92.5%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module, 1/4 Brick
Size / Dimension:	2.22" L x 1.45" W x 0.50" H (56.4mm x 36.8mm x 12.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTQA420050P2AS Match 100%	VIGOR DC-DC REGULATED POWER SUPPLY MOD	PTQA420050N2AZ vs PTQA420050P2AS
Q48S15050-NS00G Match 76%	Power-One (Bel Power Solutions) DC DC CONVERTER 5V 75W	PTQA420050N2AZ vs Q48S15050-NS00G

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 400

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$87.4000~~	~~$87.40~~
9	~~$87.4000~~	~~$786.60~~

Current price of PTQA420050N2AZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

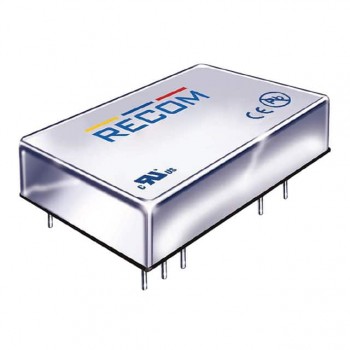

RP08-1215SA
