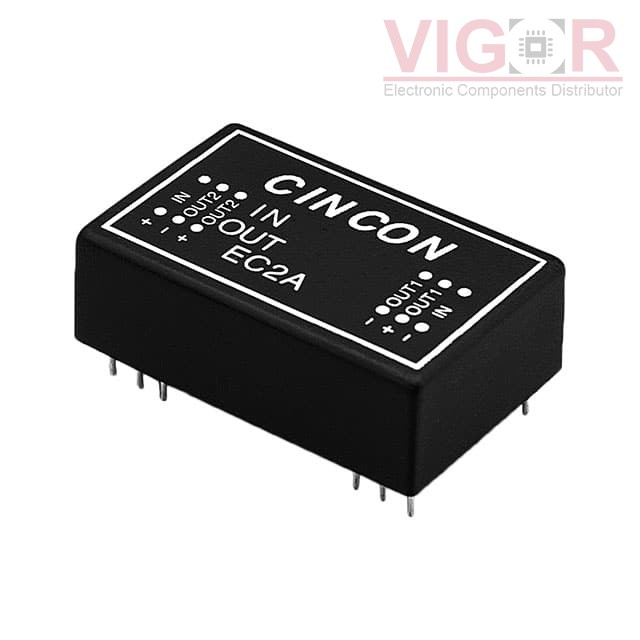

EC2A01M

Part No :: EC2A01M

Manufacturer: Cincon

VIGOR # :: 4154322

Description: DC DC CONVERTER 5V 1.5W

Catalog: DC DC Converters

DataSheet: EC2A01M PDF

Country of origin: -

Date code: -

EC2A01M Specifications

Type	Description
Series:	EC2A (1.5W)
Package:	Tube
Part Status:	Not For New Designs
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	300mA
Power (Watts):	1.5 W
Voltage - Isolation:	500 V
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-25°C ~ 71°C
Efficiency:	50%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 14 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
RV-0505S/P/R8 Match 65%	RECOM Power DC DC CONVERTER 5V 2W	EC2A01M vs RV-0505S/P/R8
RV-0505S/R8 Match 65%	RECOM Power DC DC CONVERTER 5V 2W	EC2A01M vs RV-0505S/R8
RV-0505S/P Match 65%	RECOM Power DC DC CONVERTER 5V 2W	EC2A01M vs RV-0505S/P
RV-0505S/R6.4 Match 65%	RECOM Power DC DC CONVERTER 5V 2W	EC2A01M vs RV-0505S/R6.4
RV-0505S Match 65%	RECOM Power DC DC CONVERTER 5V 2W	EC2A01M vs RV-0505S
RV-0505S/P/R6.4 Match 65%	RECOM Power DC DC CONVERTER 5V 2W	EC2A01M vs RV-0505S/P/R6.4

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1610

Shipped from

HK warehouse

Expected Shipping Date

Oct 21 - Oct 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.7600~~	~~$7.76~~
10	~~$7.6830~~	~~$76.83~~

Current price of EC2A01M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
