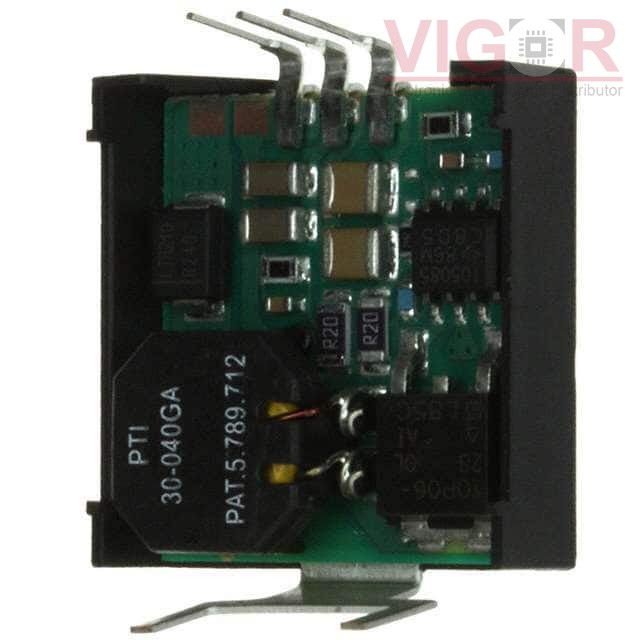

PT78NR152H

Part No :: PT78NR152H

Manufacturer: VIGOR

VIGOR # :: 4154541

Description: SWITCHING REGLTR, VOLTAGE-MODE

Catalog: DC DC Converters

DataSheet: PT78NR152H PDF

Country of origin: -

Date code: -

PT78NR152H Specifications

Type	Description
Series:	PT78NR100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	7V
Voltage - Input (Max):	25V
Voltage - Output 1:	-5.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	75%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
VX7803-1000R Match 100%	CUI Inc. DC DC CONVERTER 3.3V 3.3W	PT78NR152H vs VX7803-1000R
PT78NR103H Match 100%	Texas Instruments DC DC CONVERTER -3V	PT78NR152H vs PT78NR103H
PT78NR105H Match 100%	Texas Instruments DC DC CONVERTER -5V	PT78NR152H vs PT78NR105H
78SP117HC Match 100%	Texas Instruments DC DC CONVERTER 17V	PT78NR152H vs 78SP117HC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 816

Shipped from

HK warehouse

Expected Shipping Date

Aug 01 - Aug 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$8.0800~~	~~$8.08~~

Current price of PT78NR152H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
