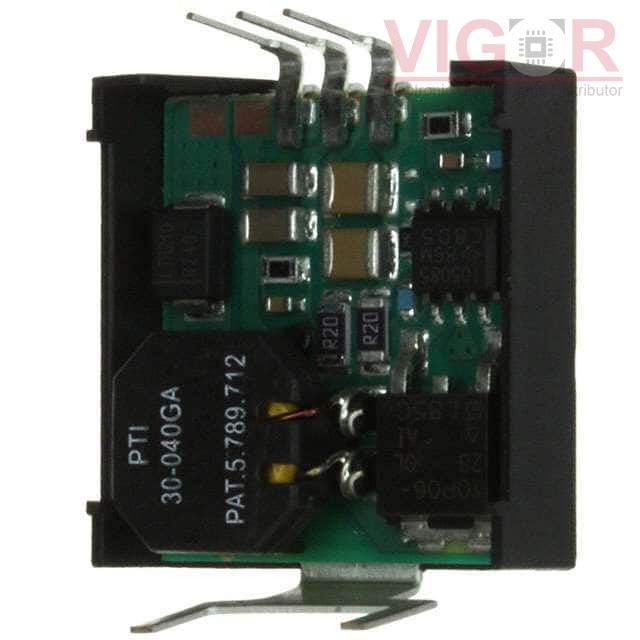

PT78NR105H

Part No :: PT78NR105H

Manufacturer: Texas Instruments

VIGOR # :: 5028154

Description: DC DC CONVERTER -5V

Catalog: DC DC Converters

DataSheet: PT78NR105H PDF

Country of origin: -

Date code: -

PT78NR105H Specifications

Type	Description
Series:	PT78NR100
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	7V
Voltage - Input (Max):	25V
Voltage - Output 1:	-5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	75%
Mounting Type:	Through Hole, Right Angle
Package / Case:	3-SIP Module
Size / Dimension:	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
VX7803-1000R Match 100%	CUI Inc. DC DC CONVERTER 3.3V 3.3W	PT78NR105H vs VX7803-1000R
PT78NR152H Match 100%	VIGOR SWITCHING REGLTR, VOLTAGE-MODE	PT78NR105H vs PT78NR152H
PT78NR103H Match 100%	Texas Instruments DC DC CONVERTER -3V	PT78NR105H vs PT78NR103H
78SP117HC Match 100%	Texas Instruments DC DC CONVERTER 17V	PT78NR105H vs 78SP117HC
