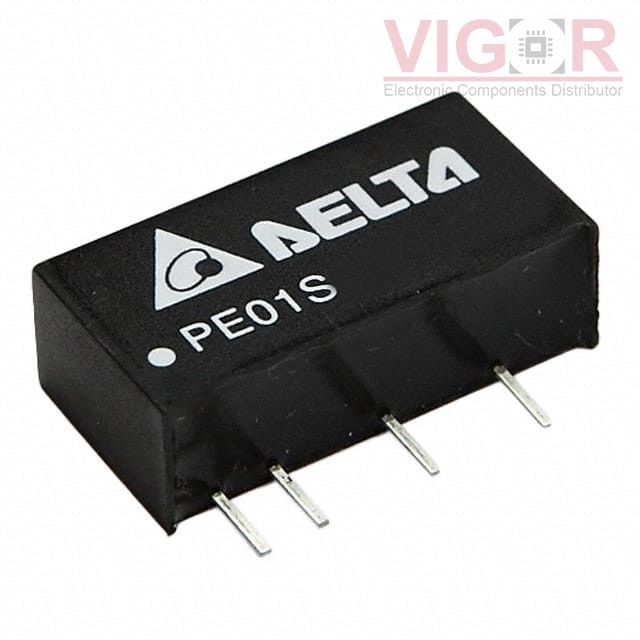

PE01S0509A

Part No :: PE01S0509A

Manufacturer: Delta Electronics / Power

VIGOR # :: 4155115

Description: DC DC CONVERTER 9V 1W

Catalog: DC DC Converters

DataSheet: PE01S0509A PDF

Country of origin: -

Date code: -

PE01S0509A Specifications

Type	Description
Series:	PE01S/D (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	110mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	Medical
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	6-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM1DS-0509S-NZ Match 94%	DComponents DC DC CONVERTER 9V 1W	PE01S0509A vs AM1DS-0509S-NZ
AM1DS-0509SH30JZ Match 85%	DComponents DC DC CONVERTER 9V 1W	PE01S0509A vs AM1DS-0509SH30JZ
PE01S0512A Match 64%	Delta Electronics / Power DC DC CONVERTER 12V 1W	PE01S0509A vs PE01S0512A
PDM1-S5-S9-S Match 94%	CUI Inc. DC DC CONVERTER 9V 1W	PE01S0509A vs PDM1-S5-S9-S
TMA 0512S Match 64%	TRACO Power DC DC CONVERTER 12V 1W	PE01S0509A vs TMA 0512S
AM1DS-0509SJZ Match 94%	DComponents DC DC CONVERTER 9V 1W	PE01S0509A vs AM1DS-0509SJZ
