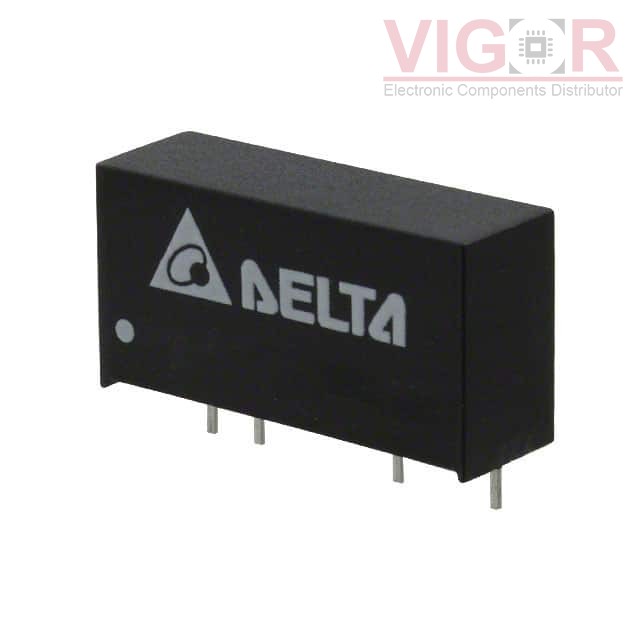

PD01S2405A

Part No :: PD01S2405A

Manufacturer: Delta Electronics / Power

VIGOR # :: 4157190

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: PD01S2405A PDF

Country of origin: -

Date code: -

PD01S2405A Specifications

Type	Description
Series:	PD01S/D (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	Medical
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	71%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
1S7WB_2405S3RP Match 100%	TE Connectivity AMP Connectors DC-DC	PD01S2405A vs 1S7WB_2405S3RP
AM1DE-2405SH30Z Match 100%	DComponents DC DC CONVERTER 5V 1W	PD01S2405A vs AM1DE-2405SH30Z
RE-2405S/H Match 95%	RECOM Power DC DC CONVERTER 5V 1W	PD01S2405A vs RE-2405S/H
RP-2405S/P Match 93%	RECOM Power DC DC CONVERTER 5V 1W	PD01S2405A vs RP-2405S/P
AM1DS-2405SH30Z Match 100%	DComponents DC DC CONVERTER 5V 1W	PD01S2405A vs AM1DS-2405SH30Z
AM1DS-2405SH40Z Match 96%	DComponents DC DC CONVERTER 5V 1W	PD01S2405A vs AM1DS-2405SH40Z
