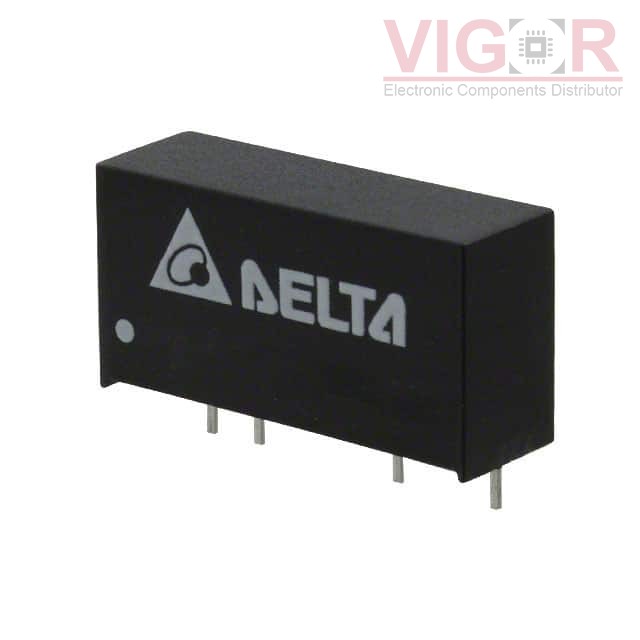

PD01S0503A

Part No :: PD01S0503A

Manufacturer: Delta Electronics / Power

VIGOR # :: 4157238

Description: DC DC CONVERTER 3.3V 1W

Catalog: DC DC Converters

DataSheet: PD01S0503A PDF

Country of origin: -

Date code: -

PD01S0503A Specifications

Type	Description
Series:	PD01S/D (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	260mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	Medical
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	73%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM1D-0503SH52Z Match 87%	DComponents DC DC CONVERTER 3.3V 1W	PD01S0503A vs AM1D-0503SH52Z
REM1-053.3S Match 87%	RECOM Power DC DC CONVERTER 3.3V 1W	PD01S0503A vs REM1-053.3S
PDME1-S5-S3-S Match 85%	CUI Inc. DC DC CONVERTER 3.3V 1W	PD01S0503A vs PDME1-S5-S3-S
AM1D-0503SH60Z Match 85%	DComponents DC DC CONVERTER 3.3V 1W	PD01S0503A vs AM1D-0503SH60Z
IV0503SA Match 94%	XP Power DC DC CONVERTER 3.3V 1W	PD01S0503A vs IV0503SA
AM1DR-0503SH30Z Match 94%	DComponents DC DC CONVERTER 3.3V 1W	PD01S0503A vs AM1DR-0503SH30Z

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 660

Shipped from

HK warehouse

Expected Shipping Date

Oct 23 - Oct 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.5079~~	~~$5.51~~
5	~~$5.4276~~	~~$27.14~~
10	~~$5.3483~~	~~$53.48~~
25	~~$5.1909~~	~~$129.77~~
50	~~$5.0337~~	~~$251.69~~
100	~~$4.8764~~	~~$487.64~~
300	~~$4.7191~~	~~$1 415.73~~
500	~~$4.4045~~	~~$2 202.25~~

Current price of PD01S0503A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
