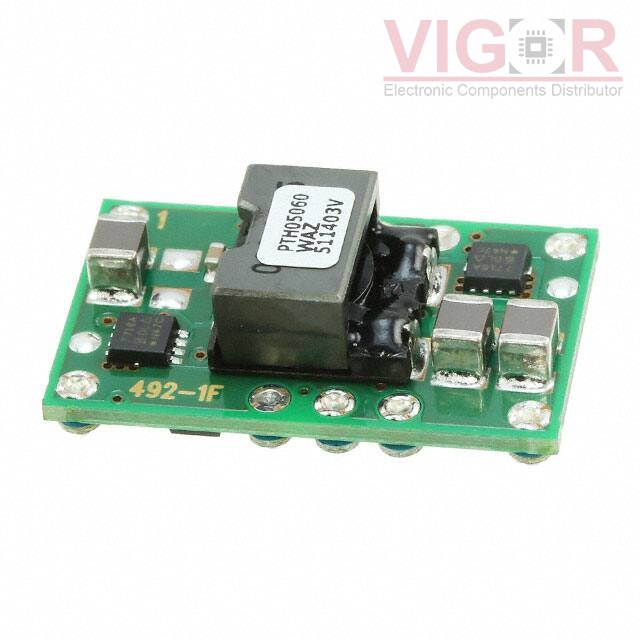

PTH05060WAZT

Part No :: PTH05060WAZT

Manufacturer: VIGOR

VIGOR # :: 4157908

Description: PTH05060W 10 A, 5-V INPUT NON-IS

Catalog: DC DC Converters

DataSheet: PTH05060WAZT PDF

Country of origin: -

Date code: -

PTH05060WAZT Specifications

Type	Description
Series:	PTH05060 (36W)
Package:	Bulk
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.8 ~ 3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	10A
Power (Watts):	36 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	94%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module
Size / Dimension:	1.00" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH05060WAST Match 100%	VIGOR PTH05060W 10 A, 5-V INPUT NON-IS	PTH05060WAZT vs PTH05060WAST
PTH05060WAS Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V 36W	PTH05060WAZT vs PTH05060WAS
PTH05060WAZ Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V 36W	PTH05060WAZT vs PTH05060WAZ
PTH05060YAS Match 100%	Texas Instruments DC DC CONVERTER 0.55-1.8V	PTH05060WAZT vs PTH05060YAS
BR205 Match 100%	Sanken Electric Co., Ltd. DC DC CONVERTER 0.75-3.63V 36W	PTH05060WAZT vs BR205
MPDTH05060WAS Match 100%	Murata Power Solutions DC DC CONVERTER 0.8-3.6V 36W	PTH05060WAZT vs MPDTH05060WAS

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 2493

Shipped from

HK warehouse

Expected Shipping Date

Jul 24 - Jul 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$16.0000~~	~~$16.00~~
250	~~$13.8355~~	~~$3 458.87~~

Current price of PTH05060WAZT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

TEP 60-3613UIR

DC DC CONVERTER 15V 60W

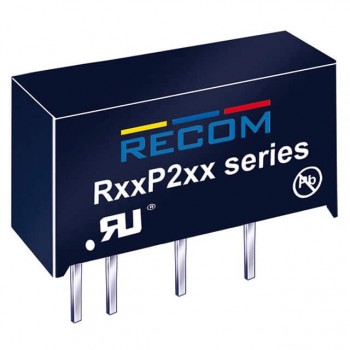

R15P205S/X2
