AM3D-0505SZ

Part No :: AM3D-0505SZ

Manufacturer: DComponents

VIGOR # :: 4158931

Description: DC DC CONVERTER 5V 3W

Catalog: DC DC Converters

DataSheet: AM3D-0505SZ PDF

Country of origin: -

Date code: -

AM3D-0505SZ Specifications

Type	Description
Series:	AM3D-Z (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	600mA
Power (Watts):	3 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	80%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer	Description	Match	Compare
3S7A_0505S1.5UP	TE Connectivity AMP Connectors	DC-DC	95%	vs
RKZ3-0505S	RECOM Power	DC DC CONVERTER 5V 3W	86%	vs
SPU03L-05	MEAN WELL	DC DC CONVERTER 5V 3W	86%	vs
IR0505SA	XP Power	DC DC CONVERTER 5V 3W	100%	vs
RKZ3-0505S/H	RECOM Power	DC DC CONVERTER 5V 3W	86%	vs
3S7A_0505S1U	TE Connectivity AMP Connectors	DC-DC	100%	vs

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1445

Shipped from

HK warehouse

Expected Shipping Date

Jul 20 - Jul 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.5400~~	~~$5.54~~

Current price of AM3D-0505SZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

AM1D-0303DZ

DC DC CONVERTER 3.3V -3.3V 1W

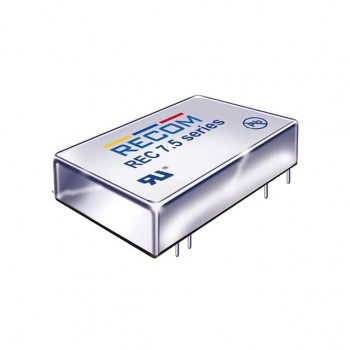

REC7.5-2412SRW/H1/A/M/CTRL
