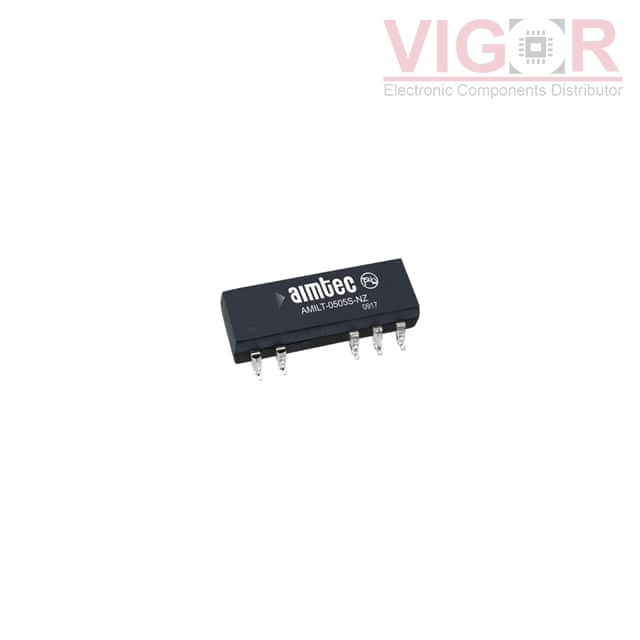

AM1LT-0505S-NZ

Part No :: AM1LT-0505S-NZ

Manufacturer: DComponents

VIGOR # :: 4158936

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: AM1LT-0505S-NZ PDF

Country of origin: -

Date code: -

AM1LT-0505S-NZ Specifications

Type	Description
Series:	AM1LT-NZ (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 71°C (With Derating)
Efficiency:	76%
Mounting Type:	Surface Mount
Package / Case:	14-SMD Module, 7 Leads
Size / Dimension:	0.77" L x 0.42" W x 0.20" H (19.5mm x 10.5mm x 5.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
TMR 1-0511SM Match 100%	TRACO Power DC DC CONVERTER 5V 1W	AM1LT-0505S-NZ vs TMR 1-0511SM
ISB0105S05 Match 100%	XP Power DC DC CONVERTER 5V 1W	AM1LT-0505S-NZ vs ISB0105S05
DCV010505P-U Match 100%	Texas Instruments DC DC CONVERTER 5V 1W	AM1LT-0505S-NZ vs DCV010505P-U
DCP010505BP-UG4 Match 95%	Texas Instruments DC DC CONVERTER 5V 1W	AM1LT-0505S-NZ vs DCP010505BP-UG4
DCV010505P-U/700 Match 100%	Texas Instruments DC DC CONVERTER 5V 1W	AM1LT-0505S-NZ vs DCV010505P-U/700
AM1LT-0505S-NZTR Match 100%	DComponents DC DC CONVERTER 5V 1W	AM1LT-0505S-NZ vs AM1LT-0505S-NZTR
