CHVM1R5-12-1000P

Part No :: CHVM1R5-12-1000P

Manufacturer: TDK-Lambda, Inc.

VIGOR # :: 4160039

Description: DC DC CONVERTER 1000V 1.5W

Catalog: DC DC Converters

DataSheet: CHVM1R5-12-1000P PDF

Country of origin: -

Date code: -

CHVM1R5-12-1000P Specifications

Type	Description
Series:	CHVM (3W)
Package:	Box
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	11V
Voltage - Input (Max):	13V
Voltage - Output 1:	1000V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5mA
Power (Watts):	1.5 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Adjustable Output, Remote On/Off, Remote Sense
Operating Temperature:	-10°C ~ 50°C
Efficiency:	-
Mounting Type:	Through Hole
Package / Case:	7-SIP Module
Size / Dimension:	1.73" L x 0.63" W x 1.18" H (44.0mm x 16.0mm x 30.0mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	CE, CSA, UL
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
CHVM2-12-1000NW Match 59%	TDK-Lambda, Inc. DC DC CONVERTER -1000V 2W	CHVM1R5-12-1000P vs CHVM2-12-1000NW
CHVM1R5-12-1000N Match 100%	TDK-Lambda, Inc. DC DC CONVERTER -1000V 1.5W	CHVM1R5-12-1000P vs CHVM1R5-12-1000N
CHVM2-12-1000PW Match 76%	TDK-Lambda, Inc. DC DC CONVERTER 1000V 2W	CHVM1R5-12-1000P vs CHVM2-12-1000PW
CHVM1R5-12-1500N Match 67%	TDK-Lambda, Inc. DC DC CONVERTER -1500V 1.5W	CHVM1R5-12-1000P vs CHVM1R5-12-1500N
CHVM2-12-1500NW Match 72%	TDK-Lambda, Inc. DC DC CONVERTER -1500V 2W	CHVM1R5-12-1000P vs CHVM2-12-1500NW

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1185

Shipped from

HK warehouse

Expected Shipping Date

Aug 26 - Aug 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$235.6600~~	~~$235.66~~

Current price of CHVM1R5-12-1000P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

EBE4120N030N76

DC DC CONVERTER 12V 360W

PQME3-D48-S5-M-TR

DC DC CONVERTER 5V 3W

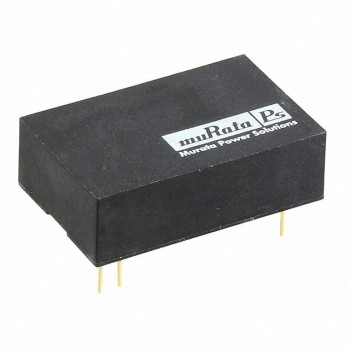

NCM6S0505C
