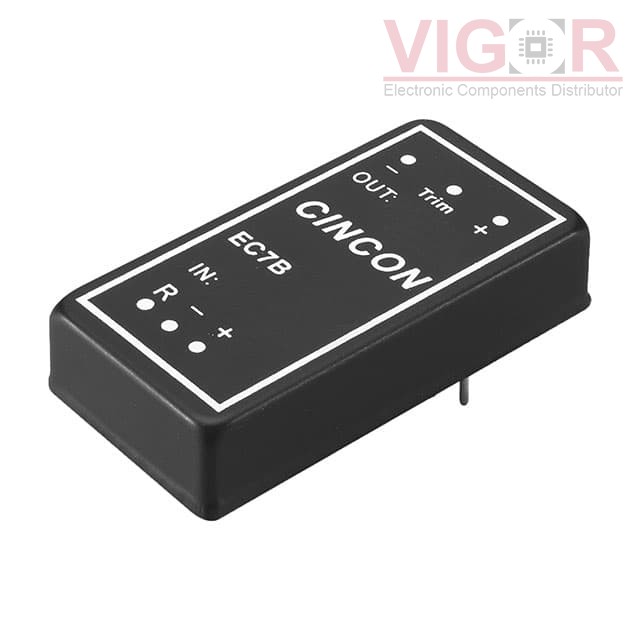

EC7B-48S05

Part No :: EC7B-48S05

Manufacturer: Cincon

VIGOR # :: 4160090

Description: DC DC CONVERTER 5V 20W

Catalog: DC DC Converters

DataSheet: EC7B-48S05 PDF

Country of origin: -

Date code: -

EC7B-48S05 Specifications

Type	Description
Series:	EC7B (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	4A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
TEN 20-4811WIR Match 95%	TRACO Power DC DC CONVERTER 5V 20W	EC7B-48S05 vs TEN 20-4811WIR
JCM2048S05 Match 99%	XP Power DC DC CONVERTER 5V 20W	EC7B-48S05 vs JCM2048S05
REC20-485.1S Match 97%	RECOM Power DC DC CONVERTER 5.1V 20W	EC7B-48S05 vs REC20-485.1S
JTK1548S3V3 Match 55%	XP Power DC DC CONVERTER 3.3V 15W	EC7B-48S05 vs JTK1548S3V3
PYB15-Q48-S3 Match 55%	CUI Inc. DC DC CONVERTER 3.3V 15W	EC7B-48S05 vs PYB15-Q48-S3
PXG-M20-48WS05 Match 86%	TDK-Lambda, Inc. DC DC CONVERTER 5V 20W	EC7B-48S05 vs PXG-M20-48WS05

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 202

Shipped from

HK warehouse

Expected Shipping Date

Nov 08 - Nov 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$41.9625~~	~~$41.96~~
12	~~$41.5471~~	~~$498.57~~

Current price of EC7B-48S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

VI-2N3-IU

DC DC CONVERTER 24V 200W

VI-J22-MX-S

DC DC CONVERTER 15V 75W

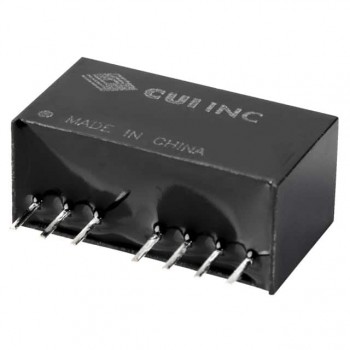

PRMC3-D48-S15-S
