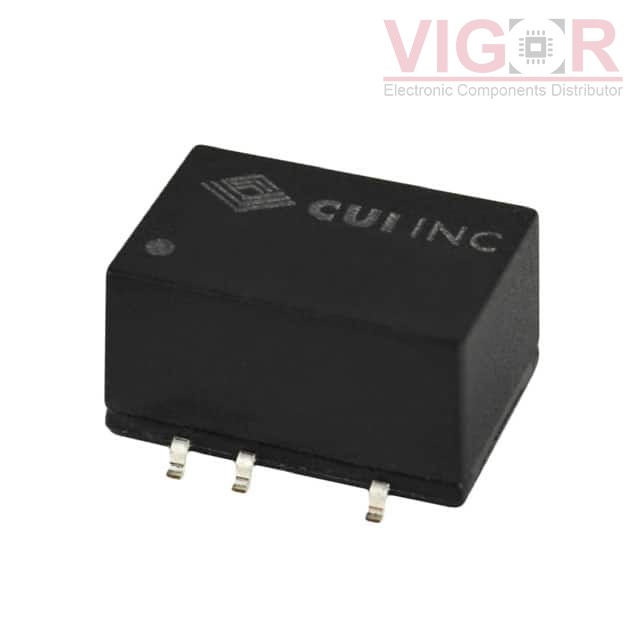

PCN1-S5-S15-M-TR

Part No :: PCN1-S5-S15-M-TR

Manufacturer: CUI Inc.

VIGOR # :: 4160335

Description: DC DC CONVERTER 15V 1W

Catalog: DC DC Converters

DataSheet: PCN1-S5-S15-M-TR PDF

Country of origin: -

Date code: -

PCN1-S5-S15-M-TR Specifications

Type	Description
Series:	PCN1-M (1W)
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	67mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 100°C
Efficiency:	79%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module, 5 Leads
Size / Dimension:	0.54" L x 0.36" W x 0.30" H (13.7mm x 9.1mm x 7.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	EN
Standard Number:	55032 Class A

Alternative Products

Part Number	Manufacturer & Description	Compare
1T8A1_0515S1.5UP Match 100%	TE Connectivity AMP Connectors DC-DC	PCN1-S5-S15-M-TR vs 1T8A1_0515S1.5UP
PES1-S5-S15-M-TR Match 91%	CUI Inc. DC DC CONVERTER 15V 1W	PCN1-S5-S15-M-TR vs PES1-S5-S15-M-TR
PDS1-S5-S15-M-TR Match 100%	CUI Inc. DC DC CONVERTER 15V 1W	PCN1-S5-S15-M-TR vs PDS1-S5-S15-M-TR
1T8CE_0515S1.5UP Match 100%	TE Connectivity AMP Connectors DC-DC	PCN1-S5-S15-M-TR vs 1T8CE_0515S1.5UP
B0515XT-1WR3 Match 100%	Mornsun DC DC CONVERTER 15V 1W	PCN1-S5-S15-M-TR vs B0515XT-1WR3
AM1LS-0515SJZTR Match 100%	DComponents DC DC CONVERTER 15V 1W	PCN1-S5-S15-M-TR vs AM1LS-0515SJZTR
