AM2G-0503SH30Z

Part No :: AM2G-0503SH30Z

Manufacturer: DComponents

VIGOR # :: 4161333

Description: DC DC CONVERTER 3.3V 1.7W

Catalog: DC DC Converters

DataSheet: AM2G-0503SH30Z PDF

Country of origin: -

Date code: -

AM2G-0503SH30Z Specifications

Type	Description
Series:	AM2G-Z (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	1.7 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off
Operating Temperature:	-40°C ~ 85°C
Efficiency:	67%
Mounting Type:	Through Hole
Package / Case:	8-SIP Module, 7 Leads
Size / Dimension:	0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cURus, UL
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
EC2SA-05S33N Match 91%	Cincon DC DC CONVERTER 3.3V 1.7W	AM2G-0503SH30Z vs EC2SA-05S33N
RS-053.3S/H3 Match 95%	RECOM Power DC DC CONVERTER 3.3V 2W	AM2G-0503SH30Z vs RS-053.3S/H3
TMR 0510 Match 91%	TRACO Power DC DC CONVERTER 3.3V 1.7W	AM2G-0503SH30Z vs TMR 0510
SPAN02E-03 Match 91%	MEAN WELL DC DC CONVERTER 3.3V 1.7W	AM2G-0503SH30Z vs SPAN02E-03
TEC 2-1210WI Match 92%	TRACO Power DC DC CONVERTER 3.3V 1.7W	AM2G-0503SH30Z vs TEC 2-1210WI
TEC 2-0910 Match 92%	TRACO Power DC DC CONVERTER 3.3V 1.7W	AM2G-0503SH30Z vs TEC 2-0910

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 315

Shipped from

HK warehouse

Expected Shipping Date

Jul 27 - Jul 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$9.3200~~	~~$9.32~~

Current price of AM2G-0503SH30Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

SUS6053R3C

DC DC CONVERTER 3.3V 4W

MGFS62405

DC DC CONVERTER 5V 6W

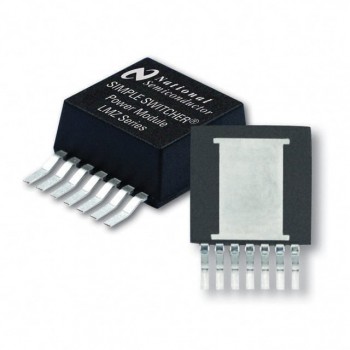

LMZ10503TZ-ADJ/NOPB
