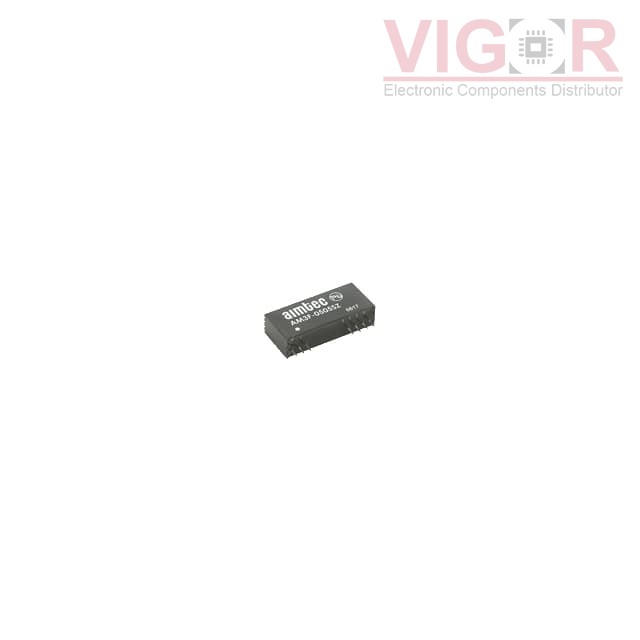

AM3F-0503SZ

Part No :: AM3F-0503SZ

Manufacturer: DComponents

VIGOR # :: 4161849

Description: DC DC CONVERTER 3.3V 2W

Catalog: DC DC Converters

DataSheet: AM3F-0503SZ PDF

Country of origin: -

Date code: -

AM3F-0503SZ Specifications

Type	Description
Series:	AM3F-Z (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	600mA
Power (Watts):	2 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-25°C ~ 71°C (With Derating)
Efficiency:	55%
Mounting Type:	Through Hole
Package / Case:	12-SIP Module, 7 Leads
Size / Dimension:	1.26" L x 0.32" W x 0.57" H (32.0mm x 8.0mm x 14.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM3F-0503SH52Z Match 86%	DComponents DC DC CONVERTER 3.3V 2W	AM3F-0503SZ vs AM3F-0503SH52Z
AM2F-0503SH30Z Match 73%	DComponents DC DC CONVERTER 3.3V 1.7W	AM3F-0503SZ vs AM2F-0503SH30Z
AM2F-0503SZ Match 87%	DComponents DC DC CONVERTER 3.3V 1.7W	AM3F-0503SZ vs AM2F-0503SZ
AM3F-0505SZ Match 52%	DComponents DC DC CONVERTER 5V 3W	AM3F-0503SZ vs AM3F-0505SZ
AM2F-0503SH52Z Match 73%	DComponents DC DC CONVERTER 3.3V 1.7W	AM3F-0503SZ vs AM2F-0503SH52Z

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 475

Shipped from

HK warehouse

Expected Shipping Date

Sep 10 - Sep 14 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$8.4000~~	~~$8.40~~

Current price of AM3F-0503SZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
