DCWN06B-05

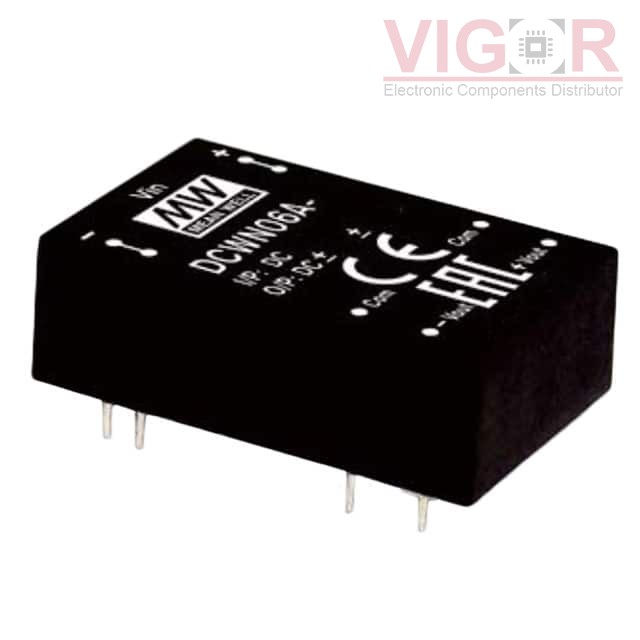

Image is for reference,
please contact us to get the real picture

Part No :: DCWN06B-05

Manufacturer: MEAN WELL

Description: DC DC CONVERTER +/-5V 5W

Catalog: DC DC Converters

DataSheet: DCWN06B-05 PDF

Availability: 1126 pieces

Unit Price: ~~$9.81000~~

Current price of DCWN06B-05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DCWN06B-05 Specifications

Type	Description
Series:	DCWN06 (6W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA, 500mA
Power (Watts):	5 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	OCP, SCP, UVLO
Operating Temperature:	-40°C ~ 90°C (With Derating)
Efficiency:	82%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
