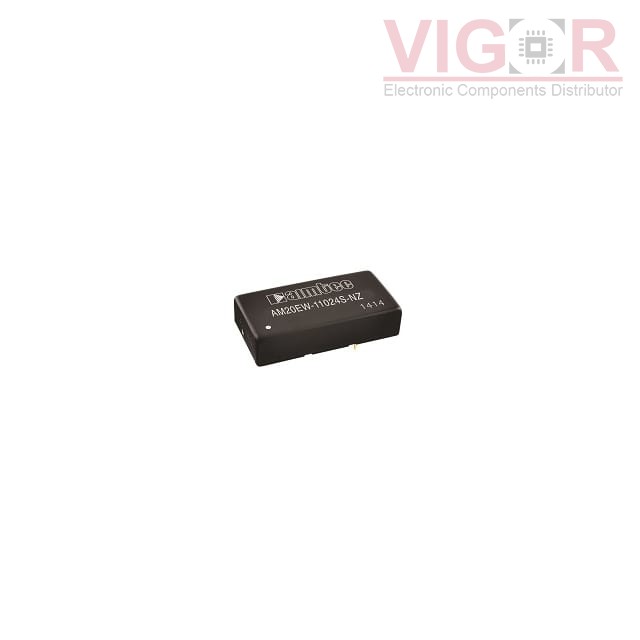

AM20EW-11024SH22-NZ-K

Part No :: AM20EW-11024SH22-NZ-K

Manufacturer: DComponents

VIGOR # :: 4163893

Description: DC DC CONVERTER 24V 20W

Catalog: DC DC Converters

DataSheet: AM20EW-11024SH22-NZ-K PDF

Country of origin: -

Date code: -

AM20EW-11024SH22-NZ-K Specifications

Type	Description
Series:	AM20EW-NZ (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	40V
Voltage - Input (Max):	160V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	833mA
Power (Watts):	20 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, Heat Sink, Remote On/Off
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	86%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.65" H (50.8mm x 25.4mm x 16.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
RDF2572S24 Match 80%	XP Power DC DC CONVERTER 24V 25W	AM20EW-11024SH22-NZ-K vs RDF2572S24
THN 20-7215WIR Match 96%	TRACO Power 20 WATT DC/DC CONVERTER, RAILWAY	AM20EW-11024SH22-NZ-K vs THN 20-7215WIR
RCD15-110S24W Match 76%	P-Duke Technology, Inc. DC DC CONVERTER 24V 15W	AM20EW-11024SH22-NZ-K vs RCD15-110S24W
AM20EW-11024S-NZ Match 95%	DComponents DC DC CONVERTER 24V 20W	AM20EW-11024SH22-NZ-K vs AM20EW-11024S-NZ
ERM01H110 Match 96%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 24V 20W	AM20EW-11024SH22-NZ-K vs ERM01H110
THN 15-7215WIR Match 76%	TRACO Power DC DC CONVERTER 24V 15W	AM20EW-11024SH22-NZ-K vs THN 15-7215WIR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 239

Shipped from

HK warehouse

Expected Shipping Date

Sep 13 - Sep 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$36.6100~~	~~$36.61~~

Current price of AM20EW-11024SH22-NZ-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
