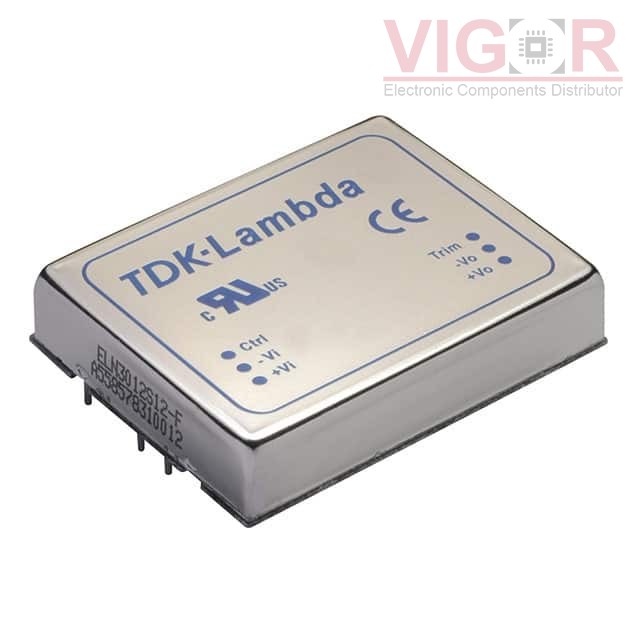

PXE3012D15

Part No :: PXE3012D15

Manufacturer: TDK-Lambda, Inc.

VIGOR # :: 4164440

Description: DC DC CONVERTER +/-15V 30W

Catalog: DC DC Converters

DataSheet: PXE3012D15 PDF

Country of origin: -

Date code: -

PXE3012D15 Specifications

Type	Description
Series:	PXE (30W)
Package:	Bulk
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A, 1A
Power (Watts):	30 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	87%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module, 7 Leads
Size / Dimension:	2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1115

Shipped from

HK warehouse

Expected Shipping Date

Jan 03 - Jan 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$93.93~~	~~$93.93~~
10	~~$88.88~~	~~$888.80~~

Current price of PXE3012D15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

REC3-4812DRW/H4/A/M/CTRL

DC DC CONVERTER +/-12V 3W

THN 10-7212WIR

DC DC CONVERTER 12V 10W

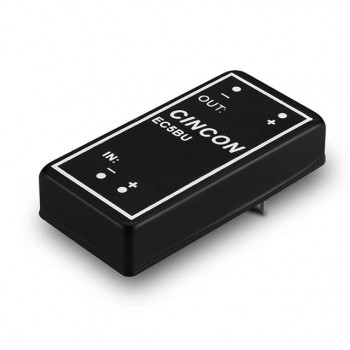

EC5BU-48D05
