JCD0612D12

Part No :: JCD0612D12

Manufacturer: XP Power

VIGOR # :: 4164857

Description: DC DC CONVERTER +/-12V 6W

Catalog: DC DC Converters

DataSheet: JCD0612D12 PDF

Country of origin: -

Date code: -

JCD0612D12 Specifications

Type	Description
Series:	JCD (6W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	250mA
Power (Watts):	6 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
JCD0512D12 Match 87%	XP Power DC DC CONVERTER +/-12V 5W	JCD0612D12 vs JCD0512D12
JTC0424D12 Match 70%	XP Power DC DC CONVERTER +/-12V 4W	JCD0612D12 vs JTC0424D12
JTC0624D15 Match 70%	XP Power DC DC CONVERTER +/-15V 6W	JCD0612D12 vs JTC0624D15
JTC0624D12 Match 99%	XP Power DC DC CONVERTER +/-12V 6W	JCD0612D12 vs JTC0624D12
JCD0412D12 Match 71%	XP Power DC DC CONVERTER +/-12V 4W	JCD0612D12 vs JCD0412D12
JCD0612D15 Match 71%	XP Power DC DC CONVERTER +/-15V 6W	JCD0612D12 vs JCD0612D15

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1144

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$20.2100~~	~~$20.21~~
10	~~$20.2100~~	~~$202.10~~

Current price of JCD0612D12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

REC5-483.3SRWZ/H2/C/M

DC DC CONVERTER 3.3V 5W

V24B24H150BF3

DC DC CONVERTER 24V 150W

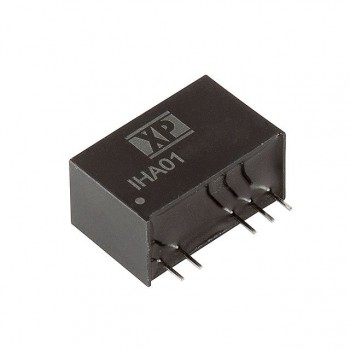

IHA0105S15
