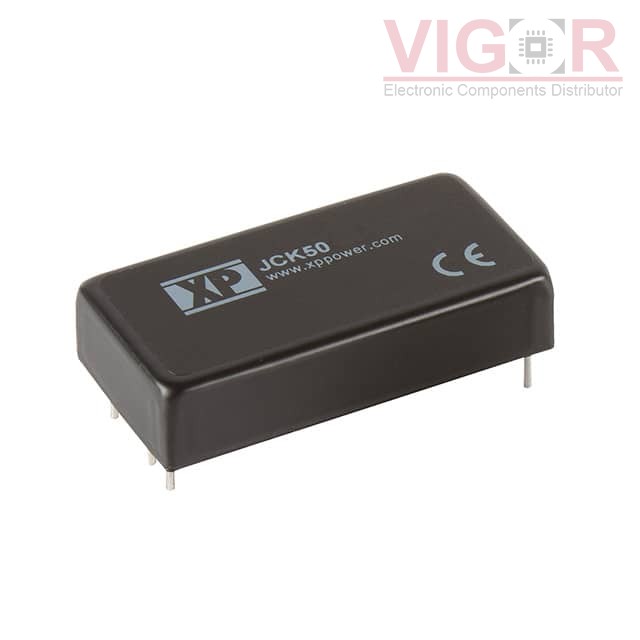

JCK5024S05

Part No :: JCK5024S05

Manufacturer: XP Power

VIGOR # :: 4165039

Description: DC DC CONVERTER 5V 50W

Catalog: DC DC Converters

DataSheet: JCK5024S05 PDF

Country of origin: -

Date code: -

JCK5024S05 Specifications

Type	Description
Series:	JCK50 (50W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	10A
Power (Watts):	50 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, SCP
Operating Temperature:	-40°C ~ 95°C (With Derating)
Efficiency:	91%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.45" H (50.8mm x 25.4mm x 11.4mm)
Supplier Device Package:	6-DIP
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
60DAW4_4805S1.6 Match 87%	TE Connectivity AMP Connectors DC-DC	JCK5024S05 vs 60DAW4_4805S1.6
VRB2405LD-50WR3 Match 99%	Mornsun DC DC CONVERTER,50W,5VDC	JCK5024S05 vs VRB2405LD-50WR3
PQAE50-D24-S5-DH Match 99%	CUI Inc. DC-DC ISOLATED, 50 W, 18~36 VDC	JCK5024S05 vs PQAE50-D24-S5-DH
PQAE50-D24-S5-D Match 99%	CUI Inc. DC-DC ISOLATED, 50 W, 18~36 VDC	JCK5024S05 vs PQAE50-D24-S5-D
AM50E-2405SVZ Match 99%	DComponents 50W DC/DC IN 2"X1" ENCAPSULATED	JCK5024S05 vs AM50E-2405SVZ
JWL5048S05 Match 99%	XP Power DC DC CONVERTER 5V 50W	JCK5024S05 vs JWL5048S05

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 377

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$80.0000~~	~~$80.00~~
5	~~$77.6000~~	~~$388.00~~
10	~~$75.2000~~	~~$752.00~~
25	~~$72.0000~~	~~$1 800.00~~
100	~~$67.2005~~	~~$6 720.05~~

Current price of JCK5024S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
