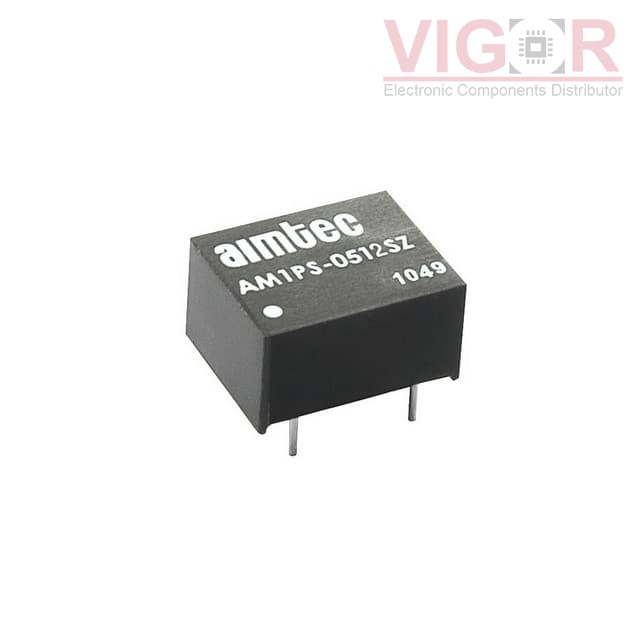

AM1PS-0505SH30Z

Part No :: AM1PS-0505SH30Z

Manufacturer: DComponents

VIGOR # :: 4165434

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: AM1PS-0505SH30Z PDF

Country of origin: -

Date code: -

AM1PS-0505SH30Z Specifications

Type	Description
Series:	AM1PS-Z (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	75%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module, 4 Leads
Size / Dimension:	0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PDSE1-S5-S5-D Match 100%	CUI Inc. DC DC CONVERTER 5V 1W	AM1PS-0505SH30Z vs PDSE1-S5-S5-D
1D8E_0505S1U Match 86%	TE Connectivity AMP Connectors DC-DC	AM1PS-0505SH30Z vs 1D8E_0505S1U
NKE0505DC Match 100%	Murata Power Solutions DC DC CONVERTER 5V 1W	AM1PS-0505SH30Z vs NKE0505DC
1MD8A_0505S3UP Match 100%	TE Connectivity AMP Connectors DC-DC	AM1PS-0505SH30Z vs 1MD8A_0505S3UP
CRE1S0505DC Match 86%	Murata Power Solutions DC DC CONVERTER 5V 1W	AM1PS-0505SH30Z vs CRE1S0505DC
NKE0505DEC Match 100%	Murata Power Solutions DC DC CONVERTER 5V 1W	AM1PS-0505SH30Z vs NKE0505DEC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 961

Shipped from

HK warehouse

Expected Shipping Date

Jul 24 - Jul 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.8100~~	~~$6.81~~

Current price of AM1PS-0505SH30Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
