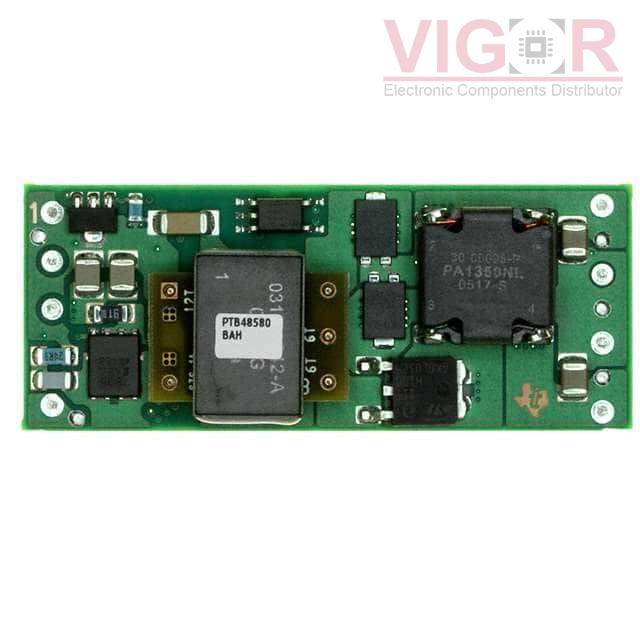

PTB48580BAH

Part No :: PTB48580BAH

Manufacturer: Texas Instruments

VIGOR # :: 4168280

Description: DC DC CONVERTER +/-12V 30W

Catalog: DC DC Converters

DataSheet: PTB48580BAH PDF

Country of origin: -

Date code: -

PTB48580BAH Specifications

Type	Description
Series:	PTB48580
Package:	Tray
Part Status:	Not For New Designs
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.25A, 1.25A
Power (Watts):	30 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module
Size / Dimension:	2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1328

Shipped from

HK warehouse

Expected Shipping Date

Jun 23 - Jun 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$74.5307~~	~~$74.53~~
15	~~$74.5307~~	~~$1 117.96~~

Current price of PTB48580BAH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

CHB300W-48S28

DC DC CONVERTER 28V 300W

RP15-1212SF/P-HC

DC DC CONVERTER 12V 15W

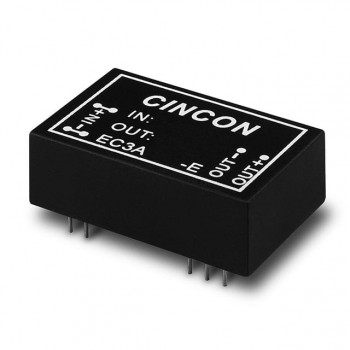

EC3A03M-E
